Integral SMC FRP Square Exhaust Fan
Integral SMC FRP Square Exhaust Fan
Integral SMC FRP Square Exhaust Fan
Integral SMC FRP Square Exhaust Fan
Integral SMC FRP Square Exhaust Fan
Integral SMC FRP Square Exhaust Fan
Integral SMC FRP Square Exhaust Fan
Integral SMC FRP Square Exhaust Fan
Integral SMC FRP Square Exhaust Fan
Description

Fiberglass square exhaust fan for agricultural or industrial applications. The molded fiberglass housing of this fan provides for low maintenance, rust free, corrosion free, easy cleaning and high performance.It can resist the strict environment and provide fresh air for the production workshop.

Chat with us Leave a message E-mail
Product Features and Advantages
  • The frame and wind blades are made of SMC fiberglass material , which are beautiful and durable.
  • Direct drive or belt drive can be selected.
  • PVC shutters are used based on the principle of airflow synthesis to prevent flies and backflow of air.
  • The motor bracket can be selected from glass fibre reinforced plastic, stainless steel, zinc pipe spraying materials.
  • Cast aluminium ,nylon or stainless steel fan blades materials can be customized.
  • EC saving-power motor can be selected.
Product Parameters
Model Dimensions

H*W*T(mm)

 Fan blades diameter

(mm)

 Motor speed

(rpm)

 Rated power

(kw)

 Air flow

(m3/h)

 Voltage

(v)

 Frequency

(hz)
DH(B)-1530SQ 1530x1530x350 136 1450 1.5 52000 380/220 50
DH(B)-1380SQ 1380x1380X350 125 1450 1.1 45000 380/220 50
DH(B)-1220SQ 1220x1220x350 105 1450 0.75 37000 380/220 50
DH(B)-1100SQ 1100x1100x350 98 1450 0.65 34000 380/220 50
DH(B)-1000SQ 1000x1000x350 70 1450 0.55 30000 380/220 50
DH(B)-900SQ 900x900x350 65 1450 0.46 27000 380/220 50
DH(B)-800SQ 800x800x350 65 1450 0.37 22000 380/220 50

Note:Special voltage and power parameter can be customized.

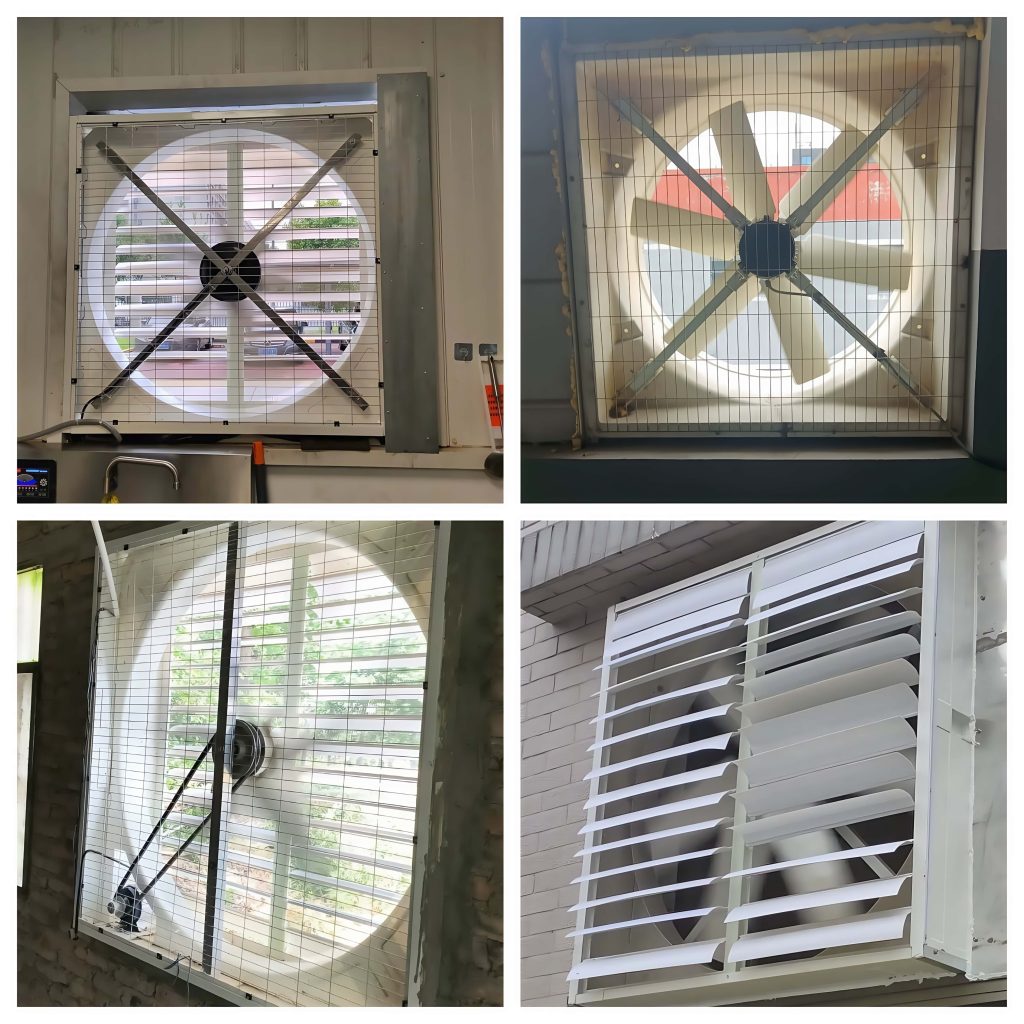

Application Areas

Industrial fields: textile, socks/clothes making, glass, molding, rubber, coating, toy,

electronics, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.

Agricultural fields:large farms, greenhouse and livestock farms, etc.

Civil fields:net bars, stores, supermarkets, mass hall, food markets, waiting-rooms and recreation places and other occasions .
