Centrifuge Push-pull Industrial Exhaust Fan
Centrifuge Push-pull Industrial Exhaust Fan
Centrifuge Push-pull Industrial Exhaust Fan
Centrifuge Push-pull Industrial Exhaust Fan
Centrifuge Push-pull Industrial Exhaust Fan
Centrifuge Push-pull Industrial Exhaust Fan
Centrifuge Push-pull Industrial Exhaust Fan
Centrifuge Push-pull Industrial Exhaust Fan
Centrifuge Push-pull Industrial Exhaust Fan
Description

The push pull type fan is mainly made up of blade, Centrifugal Opening Device, motor, outer frame, protecting nets, supporting frames, shutters. The shutters are automatically opened after starting. After shutting down, the shutters are automatically closed to prevent outdoor dust and foreign matter from entering, and also to avoid the influence of rain and snow and downwind.

Chat with us Leave a message E-mail
Product Features and Advantages

-The shutters are opened by the Push-Pull centrifugal system.

-Inlet protection net to avoid foreign items entering the fan.

-Sturdy galvanized sheet steel construction, anti-corrosive and durable.

-Propeller,made of 430 stainless steel or fiberglass.

-Motor insulation Class F ,protection level IP55.

Product parameters
                                         DH(C)-1380-40

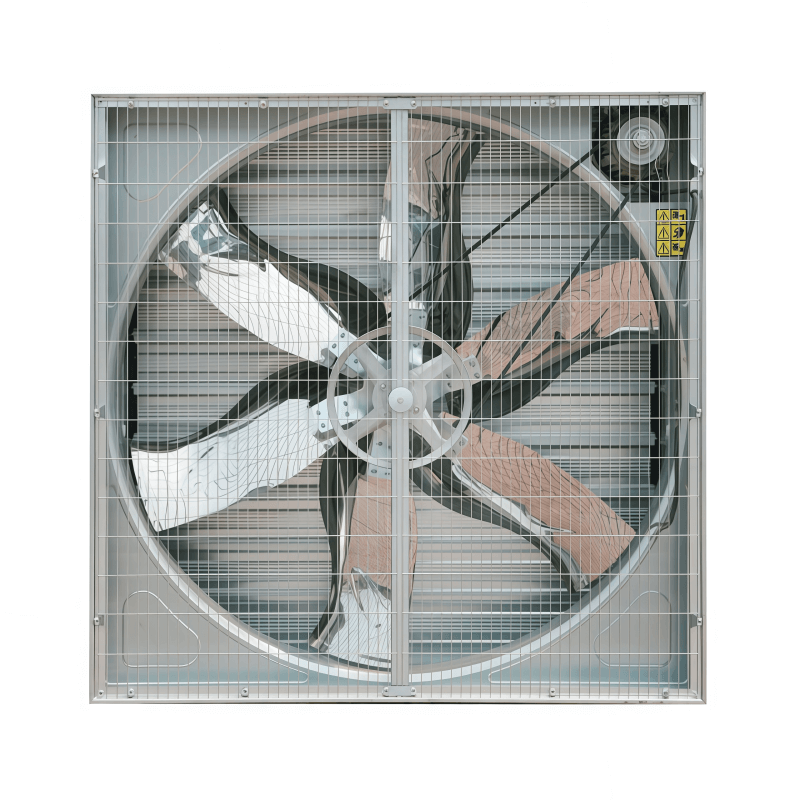

Front view of large industrial exhaust fan with FRP blades for factory ventilation

                                 DH(C)-1380-45



Model

No.

 Dimensions

H*W*T(mm)

 Propeller Dia.

(mm/inch)

 No.of blade

(pcs)

 Fan speed

(rpm)

 Rated power

(kw/hp)

 Air flow

(m3/h)

 Voltage

(v)

 Frequency

(hz)

 Noise

(db)
DH(C)-1380-40



 1380x1380x400 1320/52’’ 6 440 1.1/1.5 52500 380/220 50 65
DH(C)-1380-45



 1380x1380x450 1320/52’’ 6 440 1.1/1.5 52500 380/220 50 65

Note:Special voltage and power parameter can be customized.

Product Areas

Industrial fields: textile, socks/clothes making, glass, molding, rubber, coating, toy,electronics, shoe making, printing, food stuff,processing, dyeing, laundry and other workshops with high temperature.

Agricultural fields:large farms,greenhouse and livestock farms, etc.

Civil fields:net bars, stores, supermarkets, mass hall, food markets, waiting-rooms and recreation places and other occasions.
