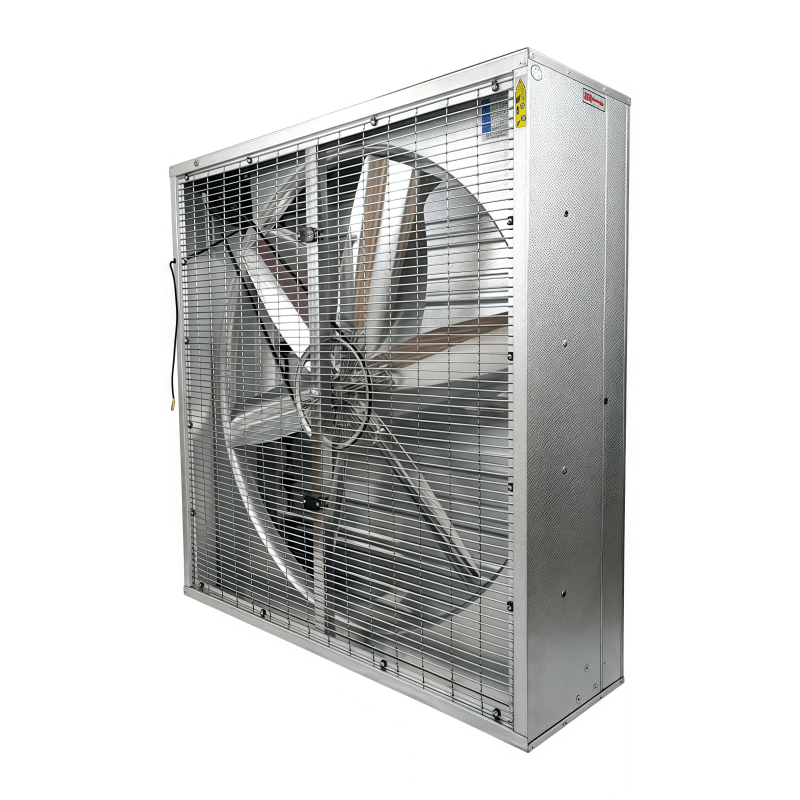

Galvanized box fan series-Drop hammer exhaust fan
Description

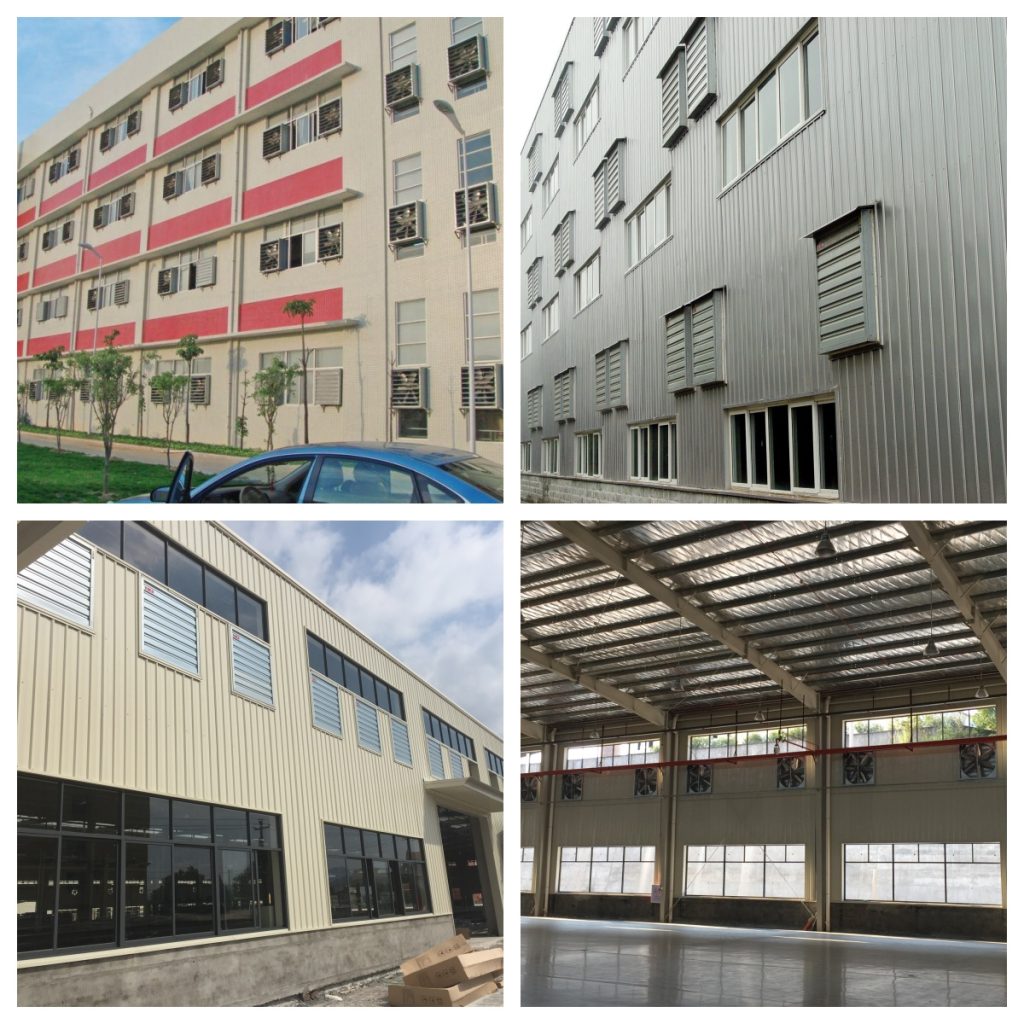

This Heavy Duty Exhaust Fan with shutters is ideal for buildings that need a lot of ventilation, such as chicken barns, greenhouses, and factory halls. The design provides high air output with low energy consumption. Installation is convenient with the box of the fan making it easy to mount it on a wall. This Box Fan can also be combined with light traps or air filters to create a complete ventilation system. This fan is constructed to last and will provide years of reliable service. Its design also allows for efficient air-flow, providing your building with the necessary ventilation while keeping energy costs low. Upgrade your building with this Heavy Duty Exhaust Fan and experience the difference in air quality in your space.

Product Features and Advantages

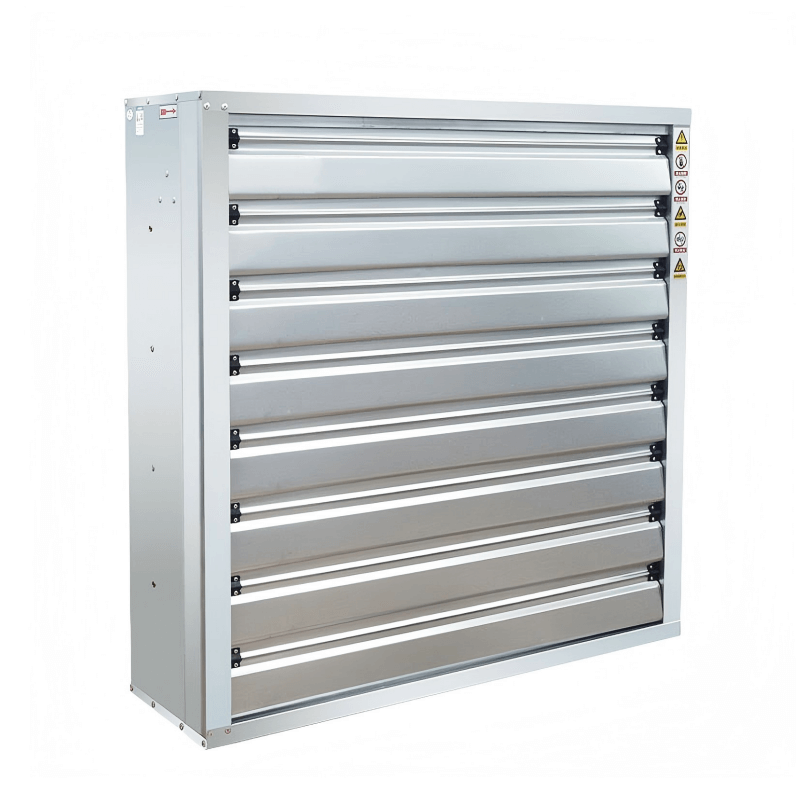

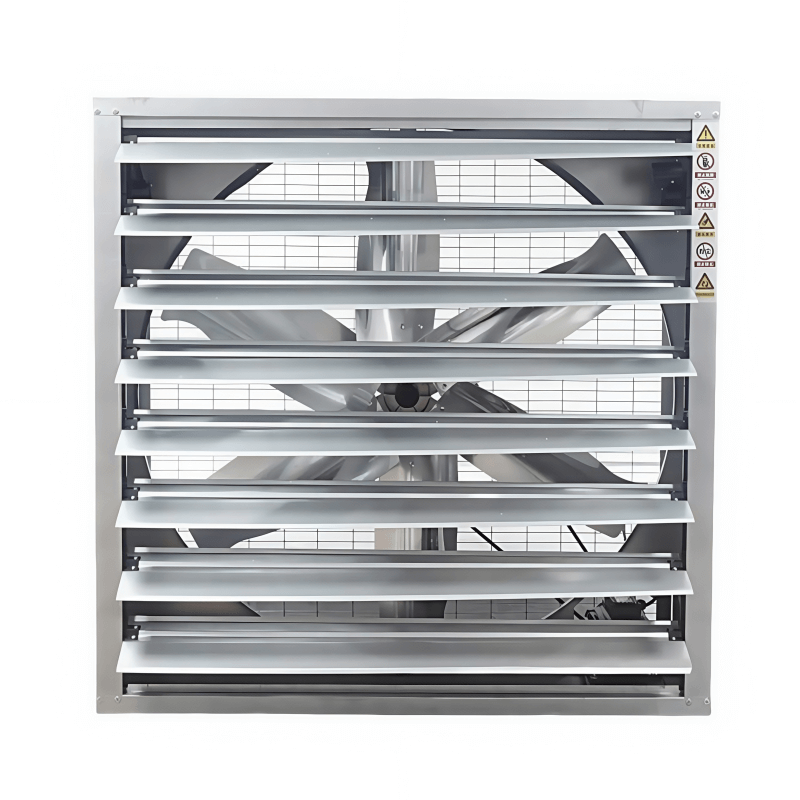

  • Automatic open/close shutter to prevent rain and wind
  • Inlet protection net to avoid foreign items entering the fan.
  • Sturdy galvanized sheet steel construction, anti-corrosive and durable.
  • Propeller,made of high strength aluminium magnesium alloy plates by punching forming.
  • Available in fan diameter 54’’,48’’,43’’,42’’,35’’,31’’
  • Air volume from 20000 up to 44500m3/h
  • Motor insulation Class F ,protection level IP55
Product parameters
Model Dimensions

H*W*T(mm)

Propeller Dia.

(mm/inch)

No.of blade

(pcs)

Fan speed

(rpm)

Rated power

(kw/hp)

Air flow

(m3/h)

Voltage

(v)

Frequency

(hz)

Noise

(db)

DH(A)-1380

(54’’)

1380x1380x400



1270/50’’ 6 445 1.1/1.5 44500 380/220 50 69
DH(A)-1220

(48’’)

1220x1220x400



1110/44’’ 6 485 0.75/1.0 37000 380/220 50 68
DH(A)-1060

(42’’)

1060x1060x400



950/38’’ 6 500 0.55/0.74 32000 380/220 50 65
DH(A)-900

(35’’)

900x900x400



790/31’’ 6 520 0.37/0.5 28000 380/220 50 63
DH(B)-800

(31’’)

800x800x350



780/31’’ 6 520 0.37/0.5 20000 380/220 50 60
