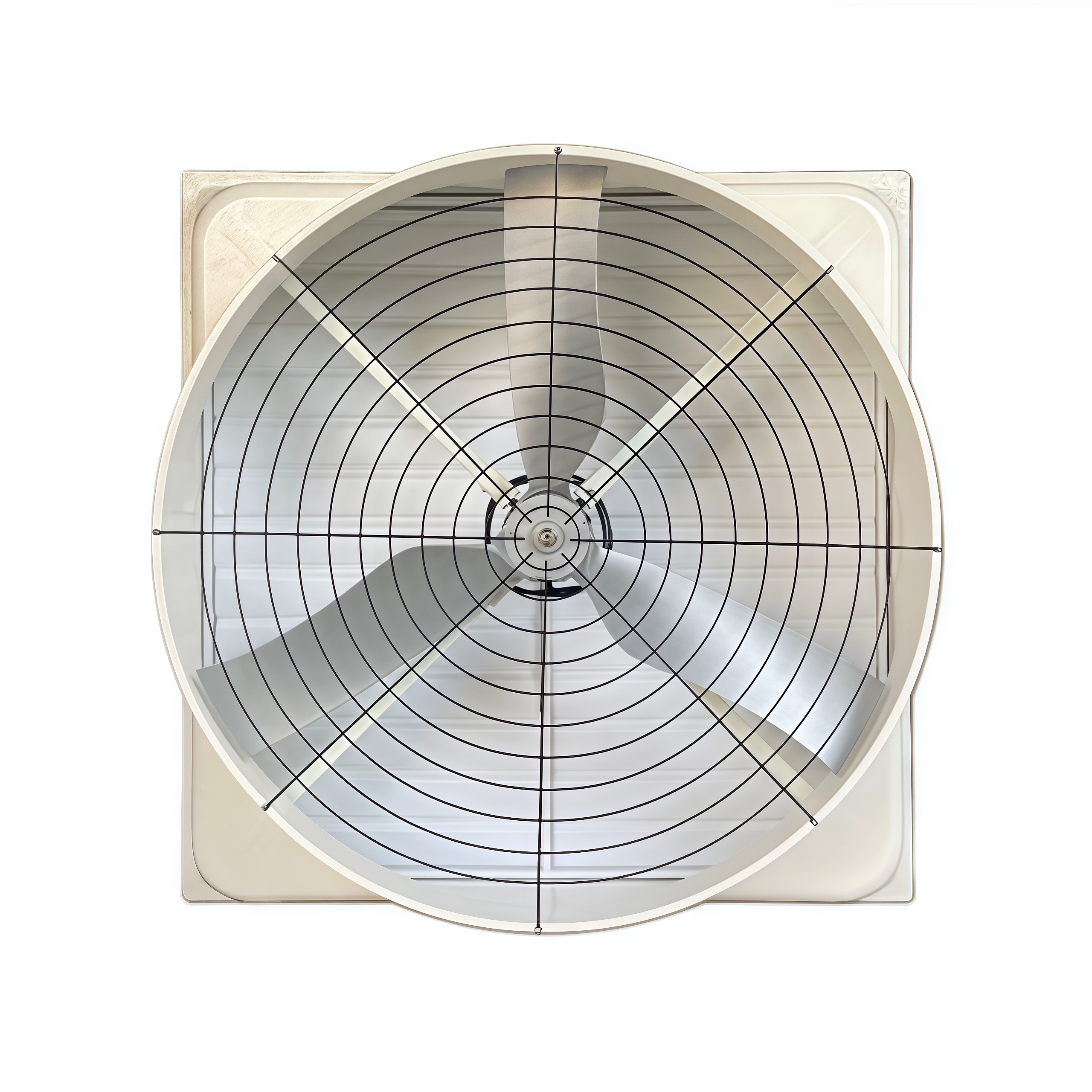

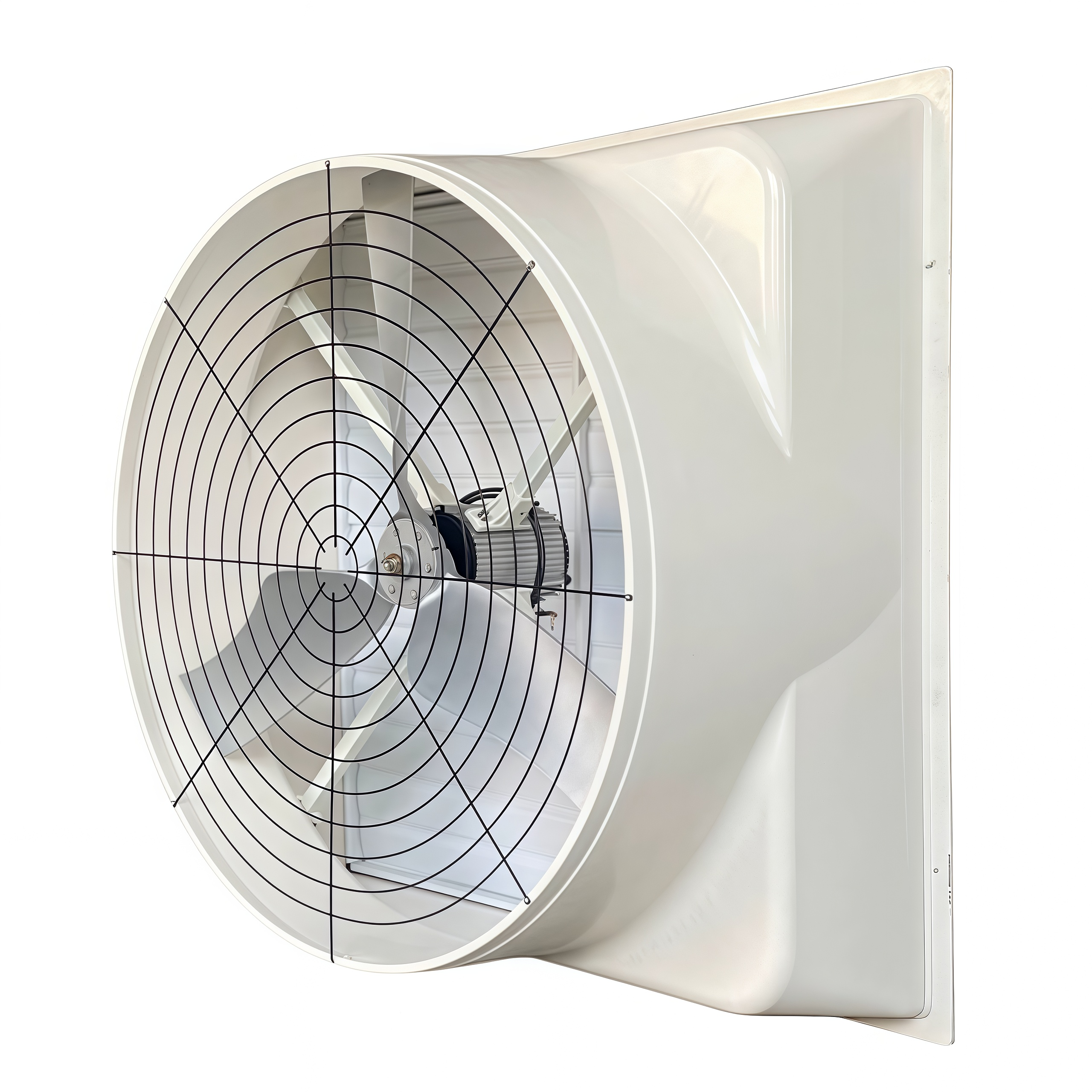

-Fiberglass reinforced plastic SMC molding shell, which are both beautiful and durable.
-The motor is directly connected to drive,with simple structure and easy maintenance.

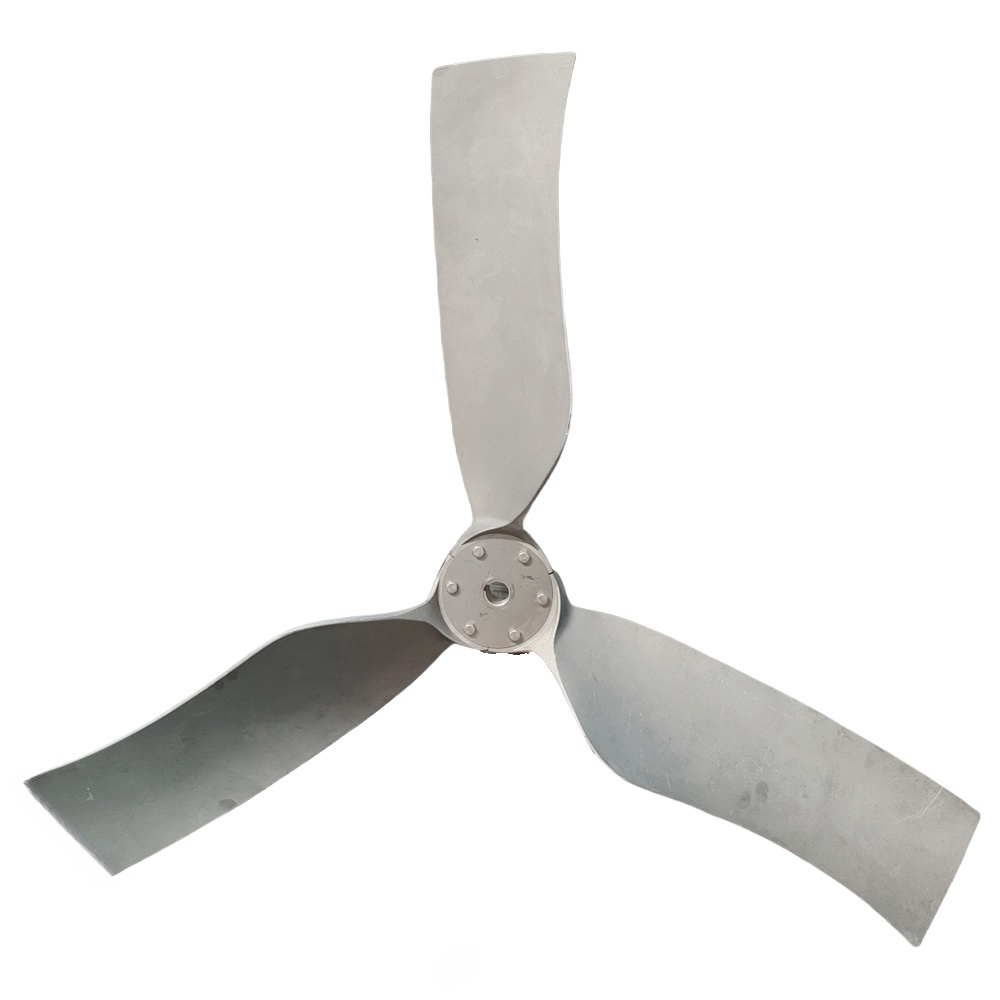

-The fan blade is die-cast with aluminum alloy as a whole,featuring high strength,light weight and high air volume and air pressure.
-PVC shutters are used based on the principle of airflow synthesis to prevent flies and backflow of air.
-Nylon or Fiberglass fan blades materials can be selected.
-EC motor are available.
| Model |
Diamensions
H*W*T(mm) |
Propeller Dia.
(mm/inch) |
No.of blade
(pcs) |
Fan speed
(rpm) |
Rated power
(kw/hp) |
Air flow
(m3/h) |
Voltage
(v) |
Frequency
(hz) |
Noise
(db) |
| DH-1460AL |
1460x1460x580 |
1240/50’’ |
3 |
540 |
1.5/2.0 |
48000 |
380/220 |
50 |
68 |
| DH-1260AL |
1260x1260x560 |
1070/43’’ |
3 |
540 |
0.75/1.0 |
38000 |
380/220 |
50 |
60 |
| DH-1060AL |
1060x1060x550 |
880/35’’ |
3 |
540 |
0.55/0.74 |
30000 |
380/220 |
50 |
60 |
| DH-850AL |
850x850x480 |
650/26’’ |
3 |
680 |
0.37/0.5 |
28000 |
380/220 |
50 |
55 |
Note:Special voltage and power parameter can be customized.

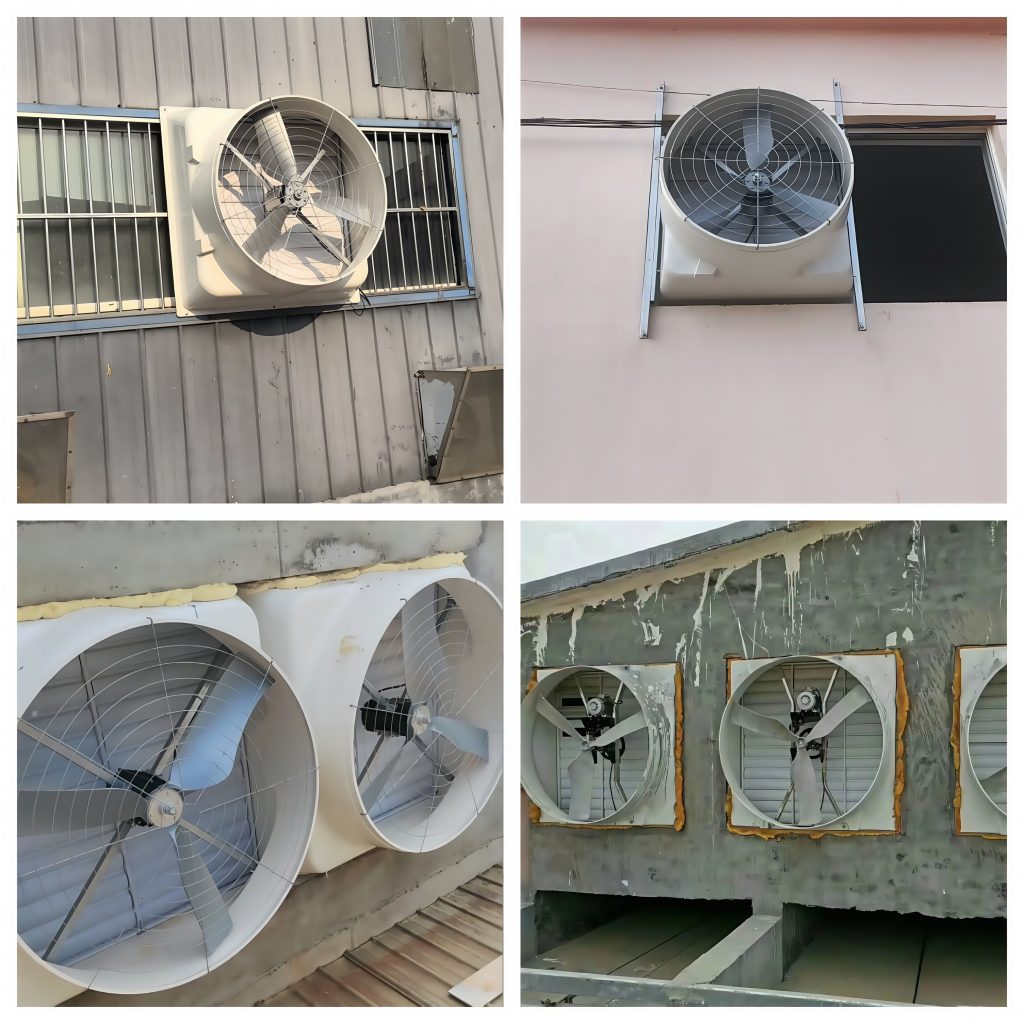

Industrial fields: textile, socks/clothes making, glass, molding, rubber, coating, toy,
electronics, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.
Agricultural fields:large farms,greenhouse and livestock farms, etc.
Civil fields:net bars, stores, supermarkets, mass hall, food markets, waiting-rooms and recreation places and other occasions.
