EC Motor Fiberglass Cone Exhaust Fan
EC Motor Fiberglass Cone Exhaust Fan
EC Motor Fiberglass Cone Exhaust Fan
EC Motor Fiberglass Cone Exhaust Fan
EC Motor Fiberglass Cone Exhaust Fan
EC Motor Fiberglass Cone Exhaust Fan
EC Motor Fiberglass Cone Exhaust Fan
EC Motor Fiberglass Cone Exhaust Fan
EC Motor Fiberglass Cone Exhaust Fan
Description

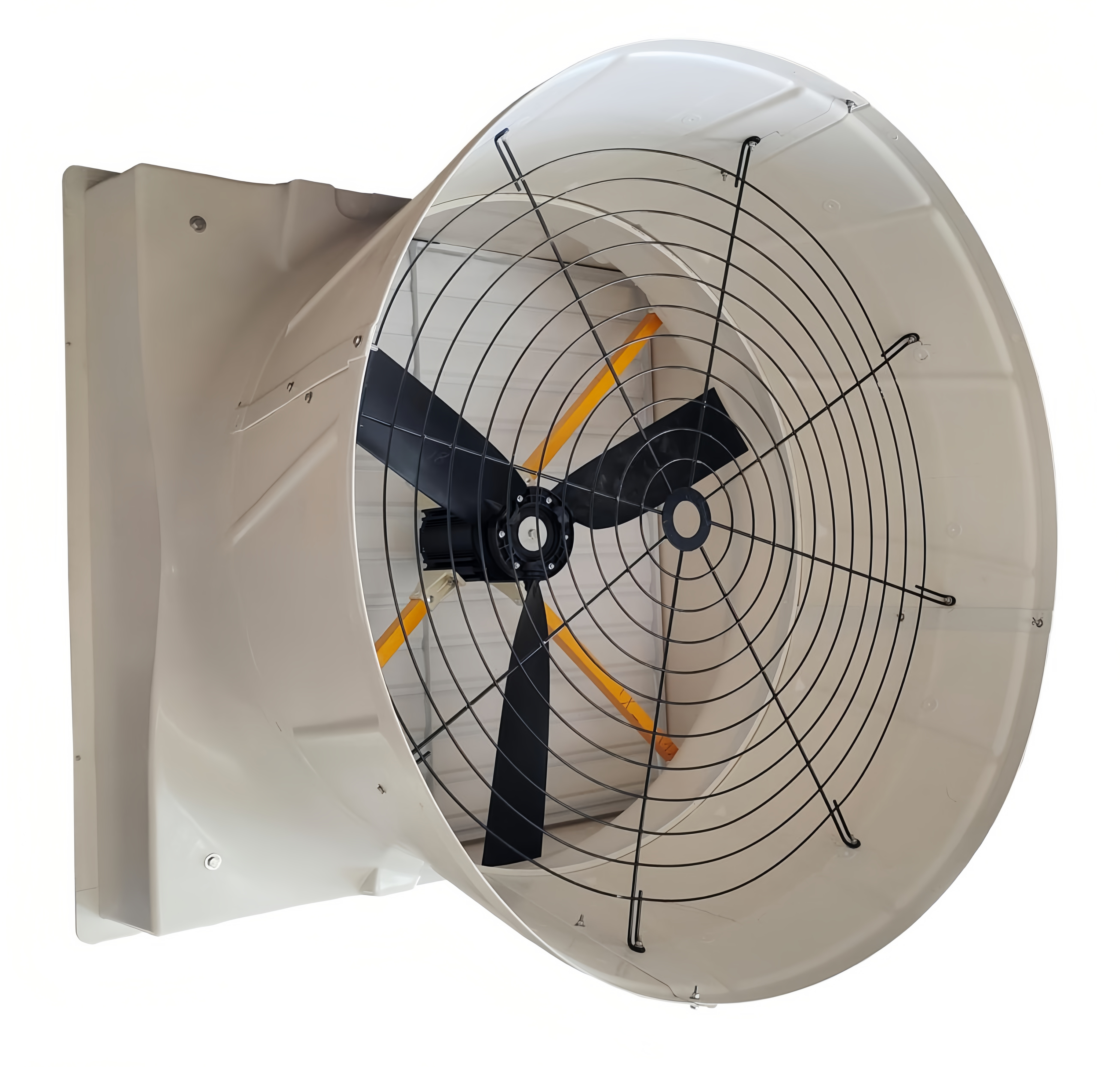

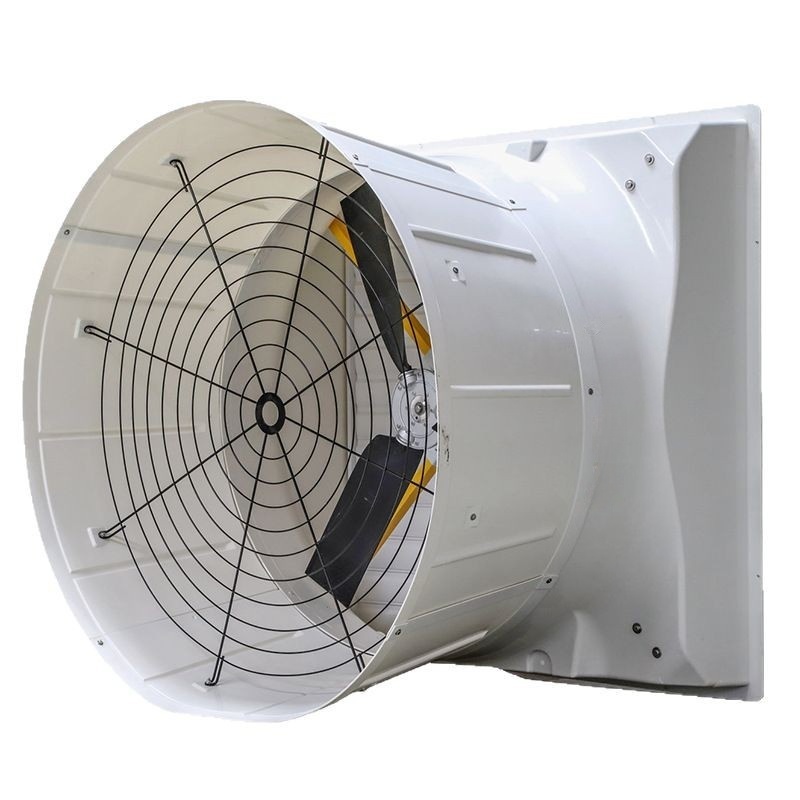

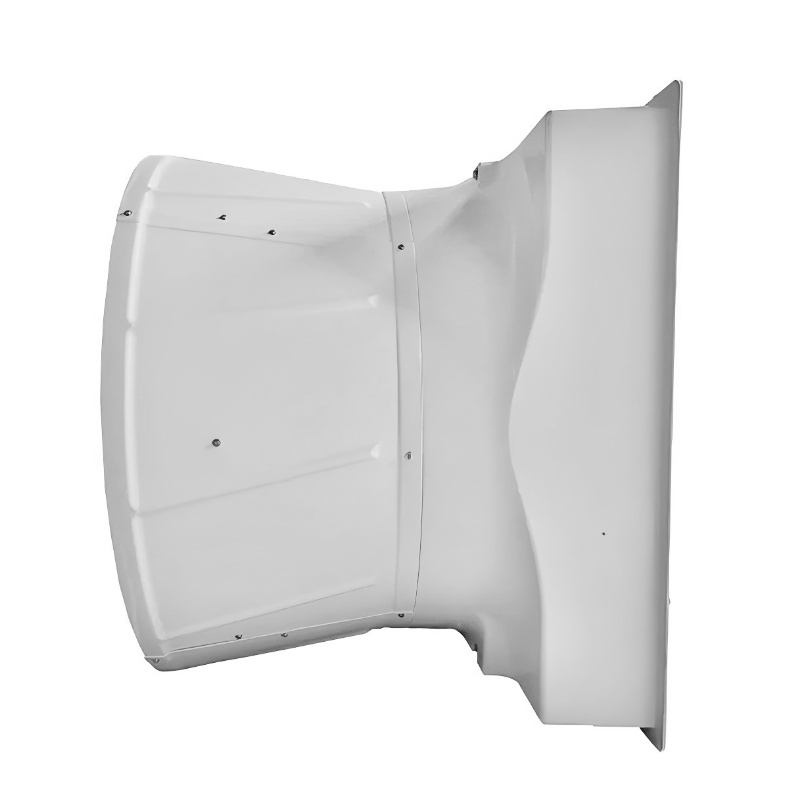

DAIHO EC Motor FRP industrial exhaust fan is engineered for high-volume ventilation in demanding environments such as factories, poultry houses, and greenhouses. Its fiberglass-reinforced plastic housing ensures excellent corrosion resistance and long service life. The aerodynamic cone design improves air extraction efficiency while reducing energy usage. Ideal for applications requiring continuous airflow and cost-effective performance, this fan is easy to install on walls and provides reliable ventilation for years.

Chat with us Leave a message E-mail
Product Features and Advantages
  • Fiberglass reinforced plastic SMC molding shell, which are both beautiful and durable.
  • High-efficiency and low-consumption:reach international standard IE60034,IE5.
  • Variable speed can be achieved 0-10VDC,RS485serial communication.
  • The motor is directly connected to drive,with simple structure and easy maintenance.
  • The fan blades are made of nylon,which are high in strength,corrosion-resistant.

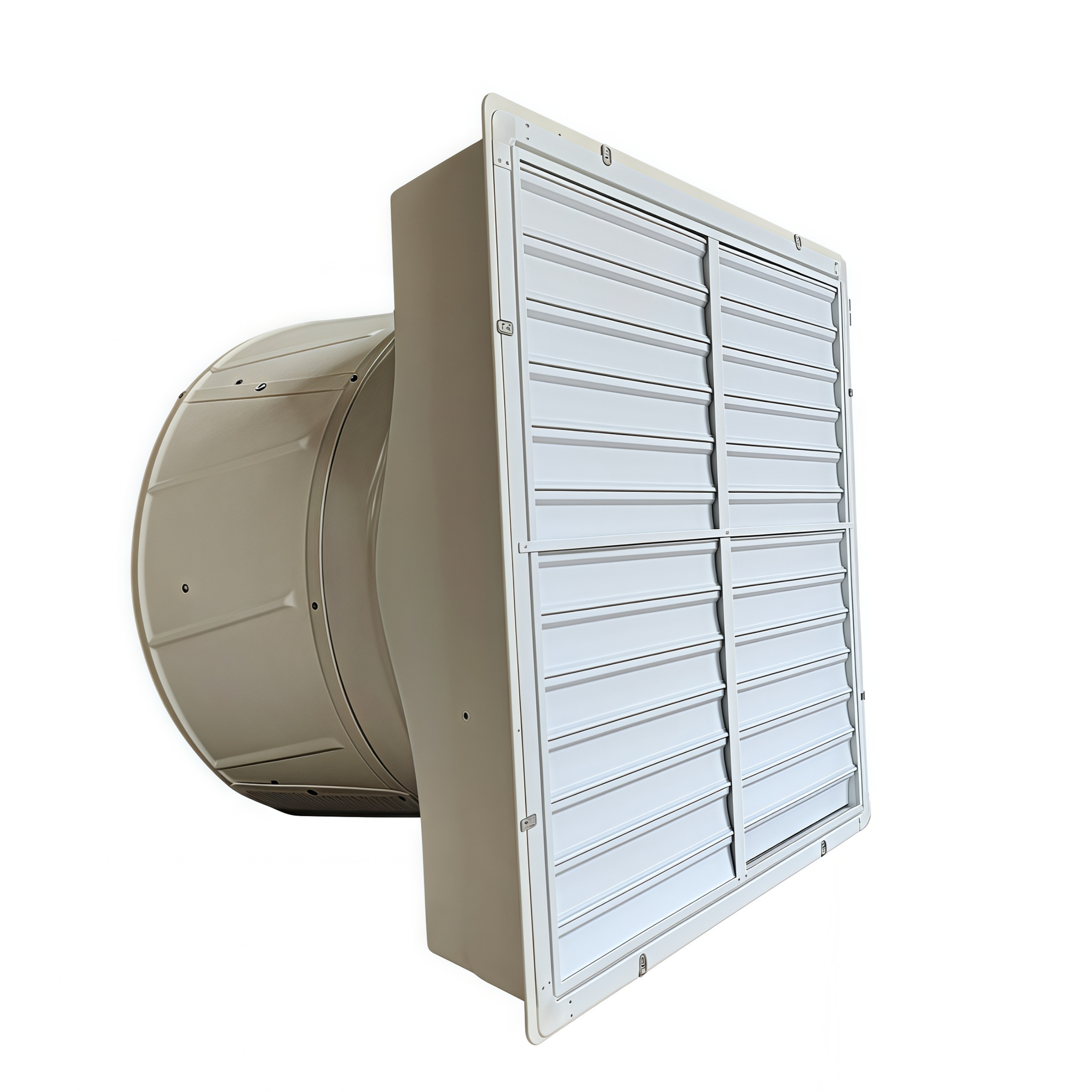

  • PVC shutters are used based on the principle of airflow synthesis to prevent flies and backflow of air.
  • The fan adopts brushless dc motor with high efficiency,and its energy efficiency is 30% higher than that of ordinary fans.
Product Parameters
Model Dimensions

H*W(mm)

 Fan Diameter

(mm)

 Fan speed

(rpm)

 Rated power

(kw)

 Air flow

0 Pa(m3/h)

 Voltage

(v)

 Frequency

(hz)

 Motor protection Hole size

(mm)
DH-55EC-A 1720×1720 1450 750 2.2 65000 380 50/60 IP66 1620×1620
DH-55EC-B 1720×1720 1450 660 1.5 63000 380 50/60 IP66 1620×1620
DH-51EC 1520×1520 1270 720 1.5 50000 380 50/60 IP66 1450×1450
DH-36EC 1060×1060 900 960 0.75 26500 380 50/60 IP66 1000×1000
DH-24EC 850×850 690 1100 0.75 15000 380 50/60 IP66 790×790

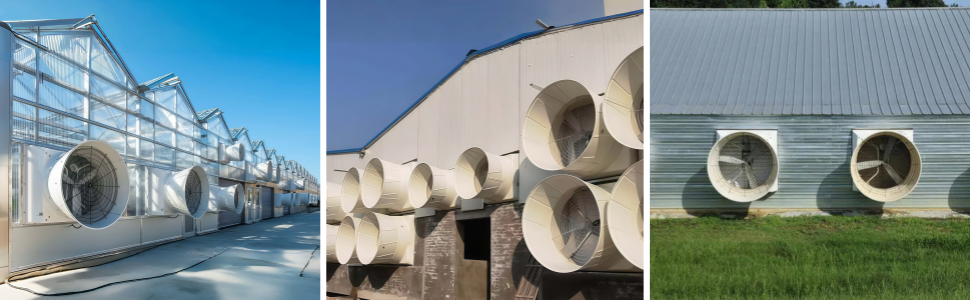

Application Areas

Industrial fields: textile, socks/clothes making, glass, molding, rubber, coating, toy,

electronics, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.

Agricultural fields:large farms, greenhouse and livestock farms, etc.

Civil fields:net bars, stores, supermarkets, mass hall, food markets, waiting-rooms and recreation places and other occasions.
