Industrial Rooftop Mounted Exhaust Fan Slope Type

Product
Home > Product > Roof Exhaust Fans

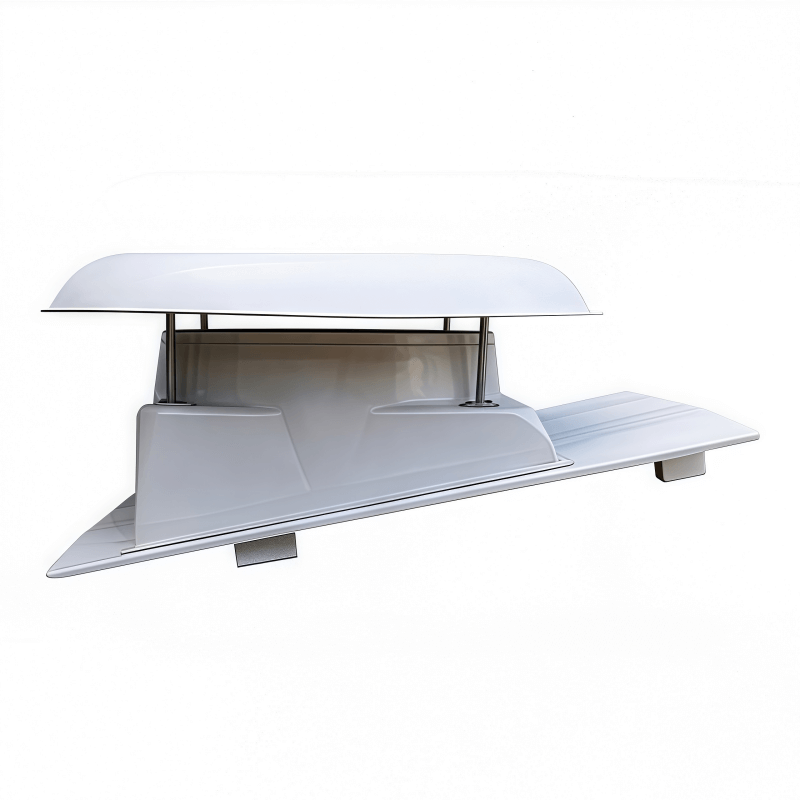

Industrial Rooftop Mounted Exhaust Fan Slope Type
Industrial Rooftop Mounted Exhaust Fan Slope Type
Industrial Rooftop Mounted Exhaust Fan Slope Type
Industrial Rooftop Mounted Exhaust Fan Slope Type
Industrial Rooftop Mounted Exhaust Fan Slope Type
Industrial Rooftop Mounted Exhaust Fan Slope Type
Industrial Rooftop Mounted Exhaust Fan Slope Type
Industrial Rooftop Mounted Exhaust Fan Slope Type
Industrial Rooftop Mounted Exhaust Fan Slope Type
Description

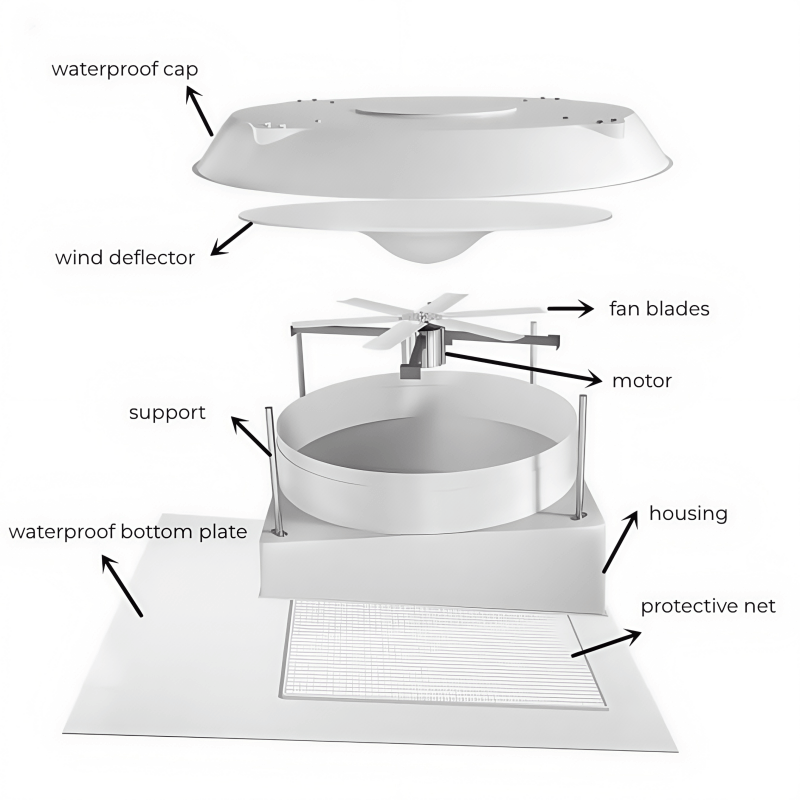

DAIHO roof-mounted industrial exhaust fan is engineered for powerful ventilation and long-term outdoor exposure. With a waterproof dome-shaped cap, wind deflector, and six axial blades, it ensures continuous airflow and protection against rain and debris. The unit’s modular design allows for easy maintenance and installation, while the reinforced structure withstands harsh weather and humidity. Suitable for factories, poultry houses, greenhouses, and warehouse facilities in Southeast Asia’s climate.



Chat with us Leave a message E-mail
PRODUCT FEATURES AND ADVANTAGES

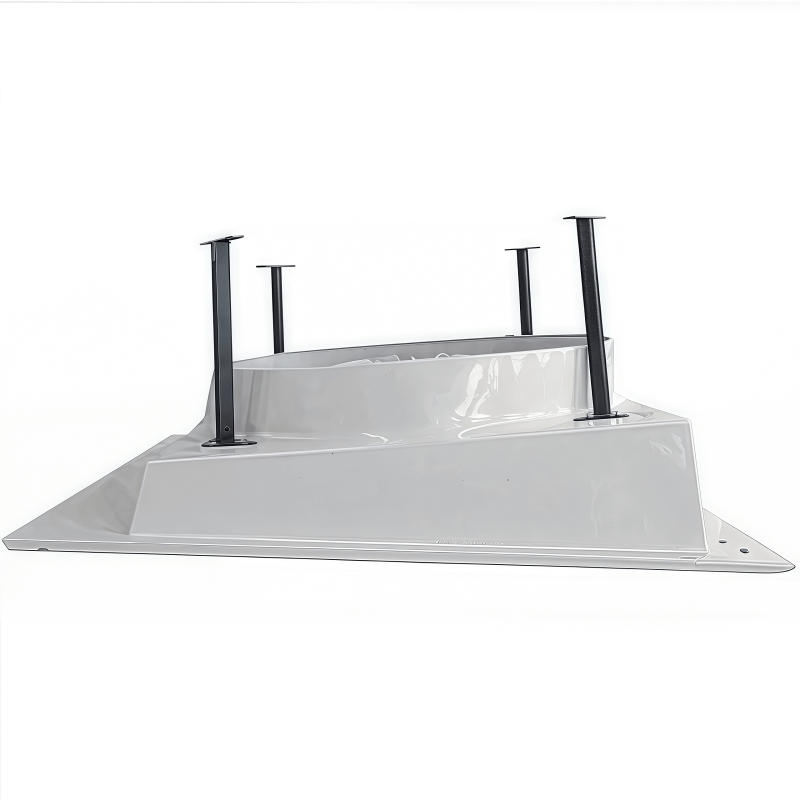

-The shell is made of hand-laid glass fiber reinforced plastic, and the surface is subject to secondary treatment, smooth and free of burrs; The product has strong toughness, long service life, excellent corrosion resistance and other characteristics.

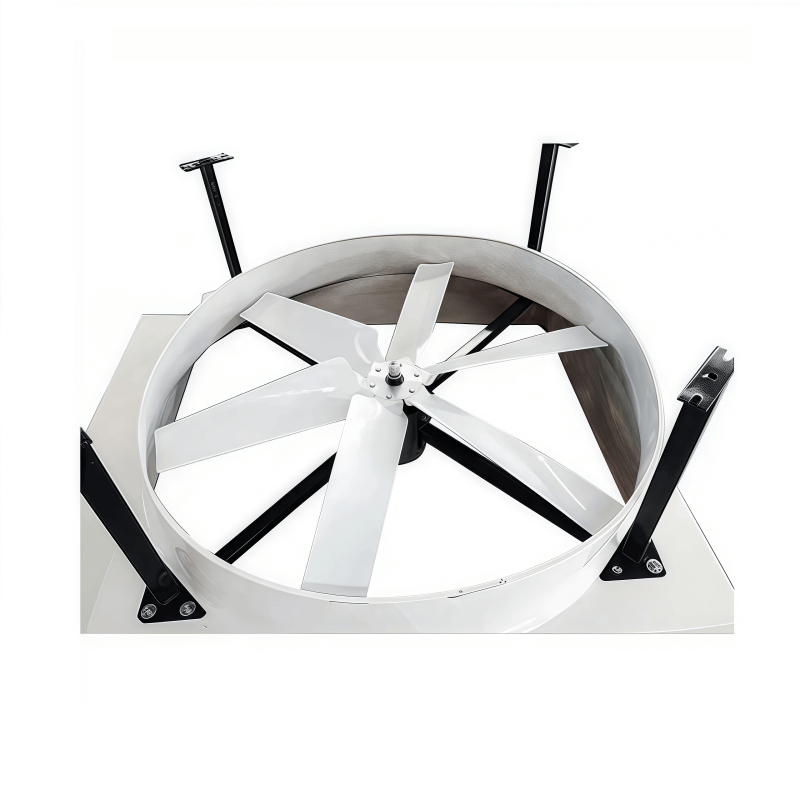

-The fan blades are made of SMC glass fiber reinforced plastic and come in a six-blade assembly. Options include 7 nylon blades and 3 cast aluminum blades.

-The 1.9-meter shood provides effective protection against rain.

-Direct-drive design,small noise,large wind volume.

PRODUCT PARAMETERS
Model Propeller Dia.

(mm/inch)

 No.of blade

(pcs)

 Fan speed

(rpm)

 Air flow

m3/h

(cfm)

 Rated power

(kw/hp)

 Voltage

(v)

 Frequency

(hz)

 Dimensions

L*W*H(mm)

 Hole size

(mm)
DH-WD1460 1250/49’’ 6 Fiberglass 560 44000

(26000)

 1.1/1.5 380/220 50 1460x1460x960 1400×1400
DH-WD1060 890/36’’ 6

Fiberglass

 560 28000

(16600)

 0.75/1.0 380/220 50 1060x1060x930 1000×1000

Note:Special voltage and power parameter can be customized.



PRODUCT APPLICATION

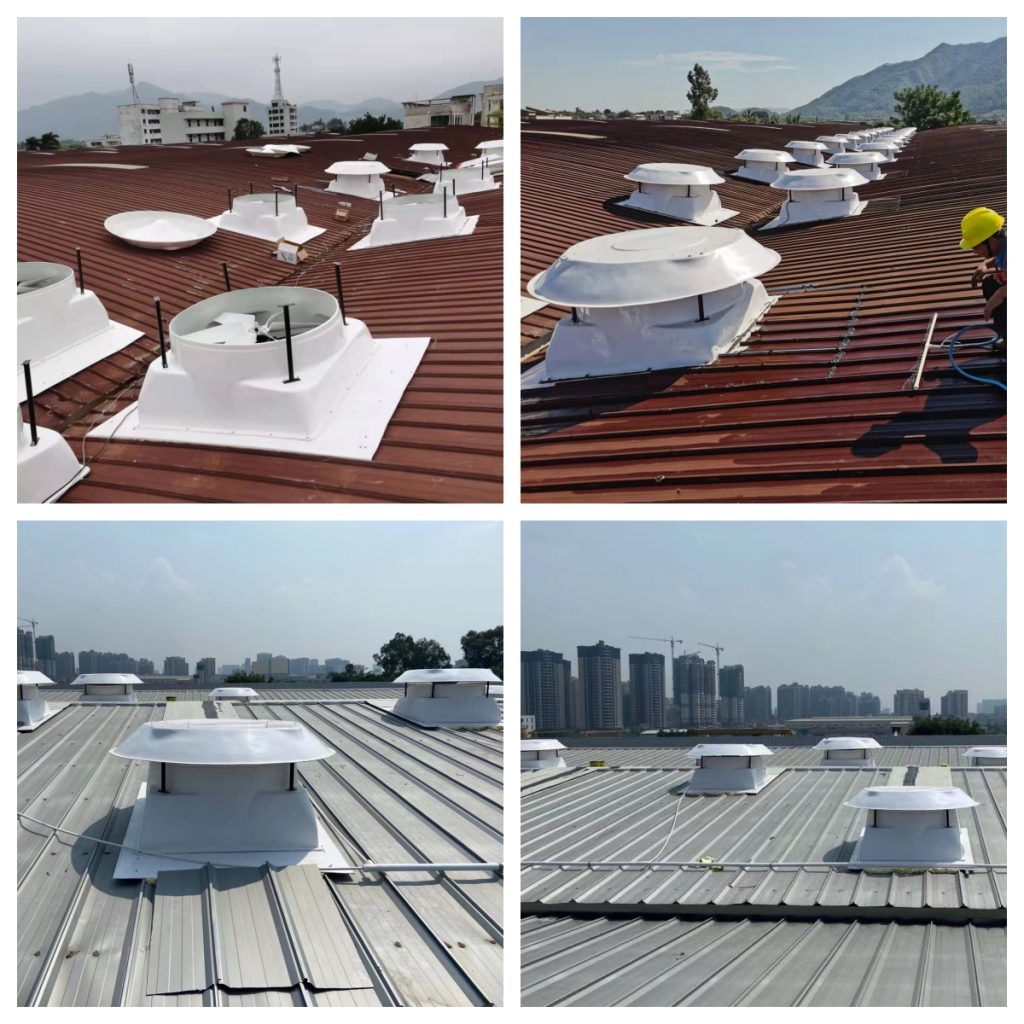

Industrial fields: textile, socks/clothes making, glass, molding,rubber,coating, toy,

electronics, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.

Agricultural fields:large farms, greenhouse and livestock farms, etc.

Civil fields:net bars, stores, supermarkets, mass hall, food markets, waiting-rooms and recreation places and other occasions.
