Axial vs Centrifugal Fans for Paint Booth Ventilation

Good air flow forms the key part of any paint booth. A solid setup for moving air keeps spray mist in check, helps deliver even finishes, and creates a safe space for workers. Picking the best fan style, axial or centrifugal, plays a big role in meeting those targets. As a top maker of air handling gear, DAIHO Ventilation guides shop leaders to pair the proper fan tech with their unique booth setup and pressure demands.

Paint Booth Airflow Requirements

Paint booths need steady air movement to clear vapors and keep the work area clean. The speed of the air, counted in feet per minute (FPM), has to stay even over the whole spraying section. Weak flow causes finish flaws and risky buildup of solvents, but too much flow uses extra power and messes up spray patterns. Things like static pressure, filter drag, and duct runs all shape which fan works better in a certain layout.

Axial Fans: High Air Volume for Open Booth Designs

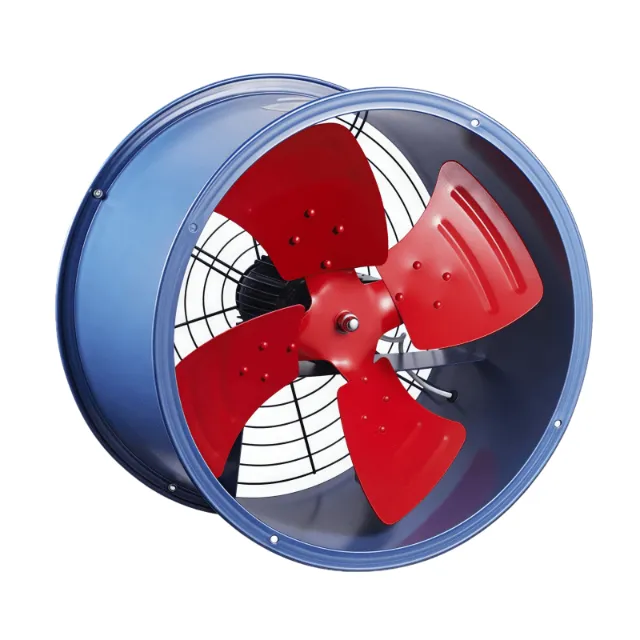

Axial fans push air straight along the shaft. Their build, usually a motor, propeller blades, and a shield, keeps them small and light. These fans shine in setups with little ductwork or low overall resistance.

Advantages

• High airflow rate with low power consumption.
• Easy to install and maintain.
• Ideal for exhaust or make up air in open style booths.

Limitations

• Poor performance when filters or ducts create high static pressure.
• Louder operation at higher speeds.
• Less efficient for enclosed or filtered paint booths.

These fans shine in simple setups. Picture a small garage booth with just a wall exhaust. Air flows straight out, no twists or turns. You get massive volumes, sometimes over 20,000 CFM from a single unit. Power draw stays low because there’s little resistance to push against. Installation? Bolt it to the wall, wire it up, done. Maintenance involves wiping blades and checking bearings now and then. No fancy tools needed.

But throw in a pre-filter or a long duct, and things change quick. Pressure drops, airflow dips. The fan spins faster to compensate, noise ramps up. It’s like revving an engine in traffic. Not ideal for booths loaded with HEPA filters or multi-stage capture. In those cases, axial fans struggle, efficiency tanks. They’ve been around forever in ventilation, though. Reliable for basic jobs, but not magic for every scenario.

Centrifugal Fans: Stable Pressure for Complex Systems

Centrifugal fans draw air in axially and discharge it at a right angle. The impeller shape generates higher pressure, making these fans suitable for systems with long duct runs or multiple filter stages.

Advantages

• Maintains steady airflow even under high resistance.
• Operates quietly when enclosed in a housing.
• Handles overspray laden air better when used with filtration systems.

Limitations

• Larger footprint and heavier weight.
• More expensive and complex to install.
• Slightly higher energy consumption.

The magic here is in the curve. Air gets flung outward by the wheel, building pressure that pushes through obstacles. Great for booths with intake plenums, exhaust filters, and ducts snaking 50 feet or more. Static pressure can hit 2 inches water gauge or higher without airflow dropping much. Noise? Put it in a scroll housing, and it quiets down a lot. Operators appreciate that in busy shops.

Overspray doesn’t kill these fans as quick either. Forward curved blades or backward inclined ones handle sticky particles better, especially with cyclone pre-separators. Energy use creeps up, sure, but you gain consistency. In automotive refinishing, where booths have three or four filter banks, centrifugal wins hands down. Installation takes planning, though. Heavier units need solid mounts, maybe vibration isolators. Cost adds up with belts, pulleys, and motors sized for the load.

Comparison at a Glance

This table lays it out clear. Axial for volume, centrifugal for pressure. Noise matters in shared facilities. Filters tip the scale toward centrifugal every time. Space and upkeep follow suit. Pick based on the toughest part of your system.

How to Choose Between the Two

The choice depends on booth configuration and performance priorities. For open booths or spaces with short duct paths, axial fans deliver cost effective performance. For automotive or industrial paint booths that include multiple filtration layers or require strict air cleanliness, centrifugal fans are more reliable.

Hybrid systems often provide the best balance, axial fans for exhaust and centrifugal fans for supply or recirculation. DAIHO Ventilation frequently customizes such mixed systems to achieve uniform airflow while minimizing noise and power consumption.

Optimizing Paint Booth Performance

A well chosen fan alone does not guarantee efficiency. Maintenance and monitoring are equally important:

• Replace filters regularly to avoid pressure buildup.
• Check fan alignment and belt tension to prevent vibration.
• Calibrate air velocity to meet safety and coating standards.
• Inspect for obstructions and clean ducts periodically.

Simple adjustments like these can improve airflow consistency and extend equipment life.

Go beyond that. Install manometers to watch pressure drops. When it climbs, filters need changing. Anemometers for velocity checks across the booth face. Uneven flow? Adjust dampers or baffles. Belts slip over time, loose tension causes whine and wear. Grease bearings on schedule, axial or centrifugal.

Ducts accumulate gunk. Overspray builds layers, restricts flow. Annual cleaning with solvents or steam keeps it open. Motors overheat in dusty spots; add inlet screens. Variable drives let you ramp down during breaks, cut bills. LED lights in booths reduce heat load, eases fan work.

Selecting the correct fan type ensures better coating results, safer working conditions, and lower operating costs. Whether a booth requires high volume exhaust or stable pressure for filtration, DAIHO Ventilation provides engineered fan solutions tailored to each project’s airflow and energy requirements.

FAQ

Q: Can I use an axial fan in a filtered paint booth?

A: Possible for light filtration, but performance drops with resistance. Centrifugal handles it better without losing airflow.

Q: How loud are these fans typically?

A: Axial runs 70-90 dB at full speed. Centrifugal in housing drops to 60-75 dB. Add silencers for quieter shops.

Q: What’s the average lifespan of paint booth fans?

A: 10-15 years with regular maintenance. Clean environments and proper sizing extend it.

Q: Do hybrid systems save energy?

A: Yes, by matching fan types to loads. Often 20-30% savings over single type setups.

Q: How often to check static pressure?

A: Monthly in heavy use. Watch for rises over 0.25 inches as a filter change signal.
