Industrial Portable Large Airflow Fan with Wheels

Product
Industrial Portable Large Airflow Fan with Wheels
Description

DAIHO high velocity portable industrial fan is engineered to provide efficient air circulation and cooling in large-scale commercial or industrial environments. With a robust three-blade design and heavy-duty construction, it offers optimal airflow for spaces requiring ventilation, dust control, or temperature management.

Equipped with smooth-gliding wheels, the fan can be easily repositioned across workshops, production lines, or warehouses. The protective grille ensures safe operation, while the integrated handle and digital control panel allow for easy adjustments. Ideal for Southeast Asia’s hot and humid climate, this fan helps improve workplace comfort and productivity.

Product Features and Advantages
  • PM motor low energy consumption, high efficiency;
  • easy to move, and the universal wheels are flexible and convenient.
  • Aerodynamic blades, high wind efficiency, strong airflow.
  • Air supply distance is 35-40m, and the best air supply distance is 5 to 20m;
  • High-density net cover, providing security protection;
  • Plug and play, energy saving, durable worry.
Product Description

Brand Name
Daiho
Place of Origin
China
Whether with wheels
YES
Product price
Factory Wholesale Price
Power
0.55 KW
Voltage
220 V
Blades
3、6
Size
1.5 m/4.9 ft
Air volume
38000 m³/min
Max speed
440 RPM
Full load current
2.5 A/220 V
Fan weight
60 KG
Noise level
45 dB(A)
Motor Type
PMSM
Certification
CE、ISO9001、CCC
MOQ
1set
Customized support
OEM
Support sample taking
YES
Used
Tall space Warehouse, Logistics, Factory, Livestock Farm, worship Places, Church, Gym
Product Keywords
High velocity floor fan, Big movable fans, Movable Fan With Wheels, Big drum fan, 1.5/2 m
Product Details

Model DHA-48 DHA-30
Voltage(v) 220 220
Frequency(hz) 50 50
Power(w) 600 400
Blade Dia.(m) 1.25 0.76
Max speed(rpm) 440 900
Air volumn(m³/min) 38000 25000
Application area(㎡) 220-300 220-300
Fan blades(pcs) 3 3
Weight(kg) 60 20

Note:The voltage can be customized according to your requirements

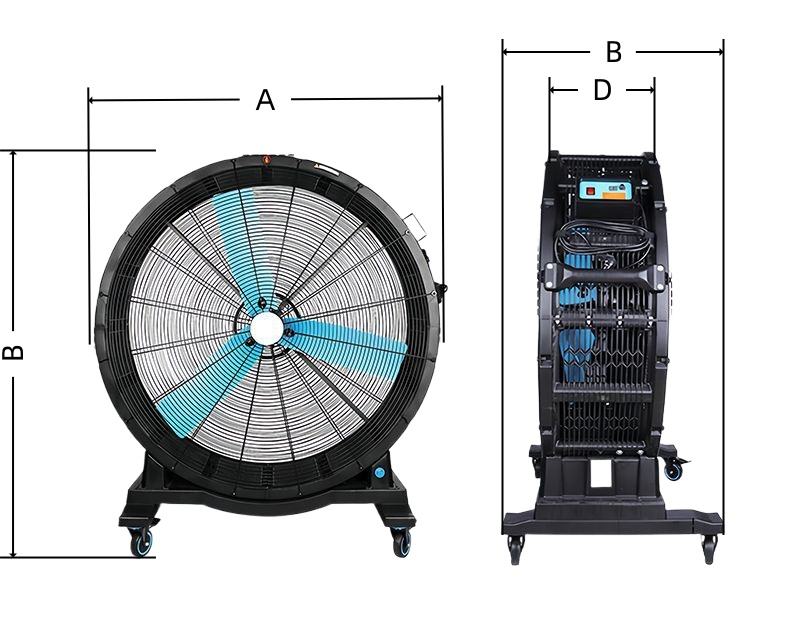

Item A

(mm)

B

(mm)

C

(mm)

D

(mm)

DHA-48 1510 790 1680 460
DHA-30 920 480 1070 320
