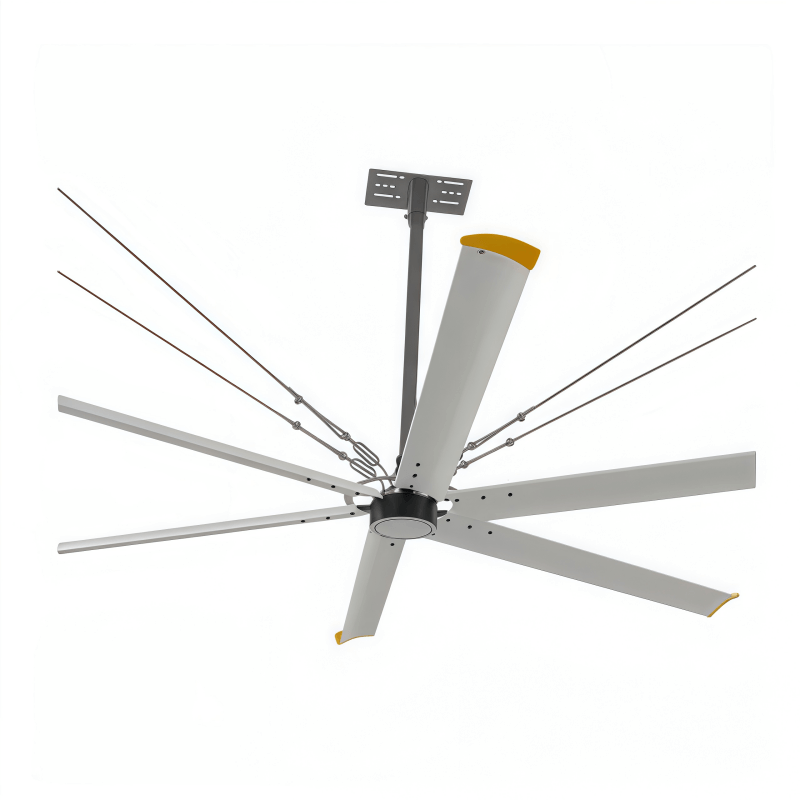

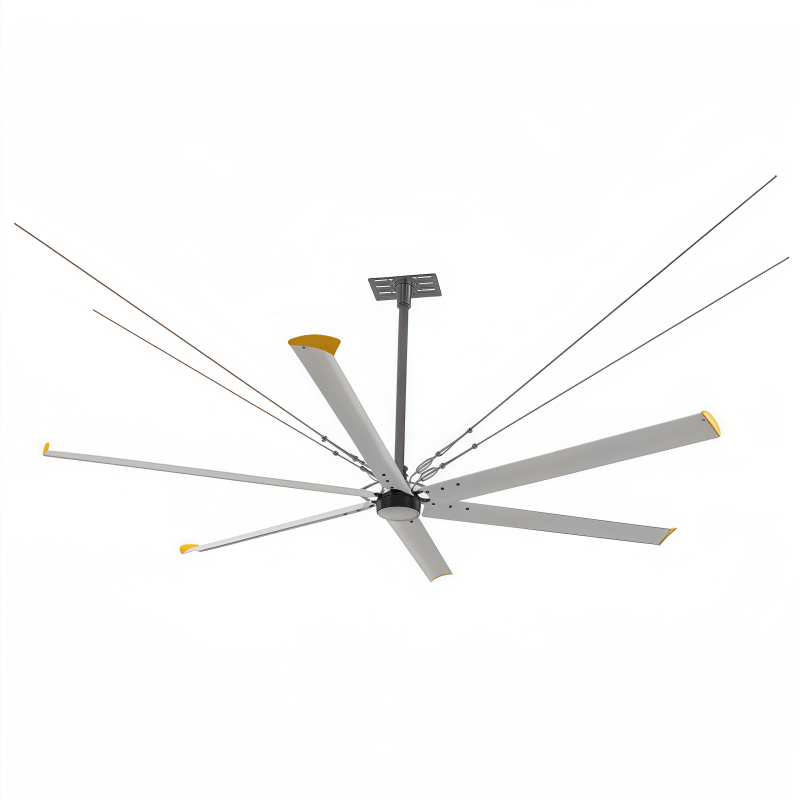

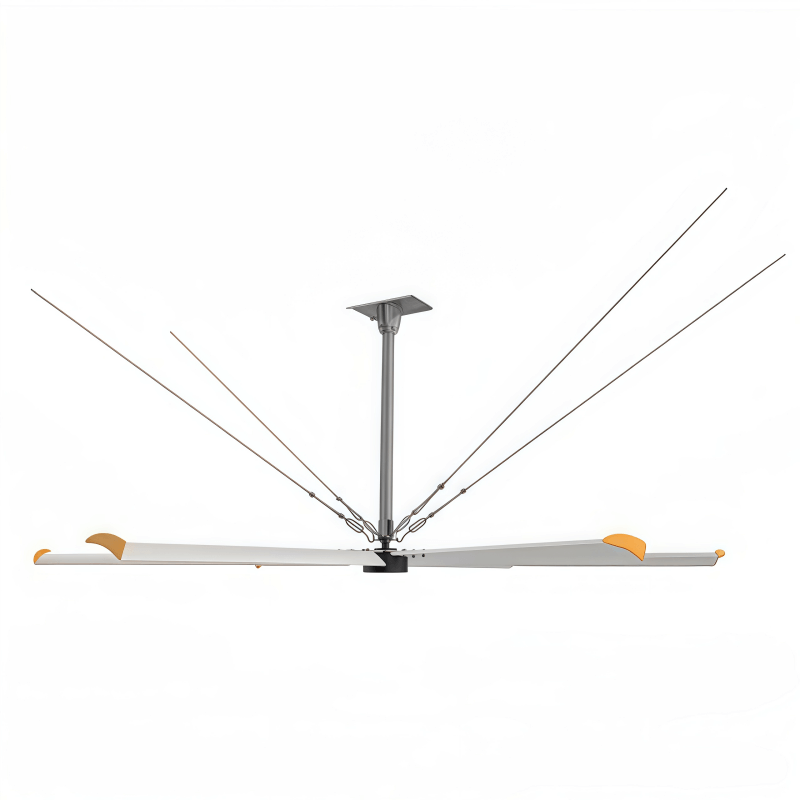

4.2-7.3m permanent magnet hvls ceiling fan

Description

High performance sensorless recognition BD-DSP driver, characterized by stability and reliability; Wide speed range, high operating efficiency, and can be used in the range of 50Hz~60Hz; Convenient speed regulation, smooth operation, stable performance, using two-stage deceleration technology, suitable for use in the commercial ceiling fan industry.

Made of high-performance aluminum copper magnesium zinc alloy material, streamlined fan blades are made using advanced molding technology and produced in one go, with light weight and high strength.

Chat with us Leave a message E-mail

Product parameters

Model	Blades No.	Fan Diameter (mm/ft)	Power (kw)	Voltage (v)	Frequency (hz)	Air volume (m3/h)	Speed (rpm)	Noise (dB)
DH-XC-73	6	7300(24)	1.5	220/380	50/60	14200	50	39
	5		1.1	220/380	50/60	13800	52	39
DH-XC-67	6	6700(22)	1.5	220/380	50/60	13000	52	39
DH-XC-61	6	6100(20)	1.1	220/380	50/60	12200	60	39
	5		0.75	220/380	50/60	11900	62	39
DH-XC-55	6	5500(18)	1.1	220/380	50/60	9600	60	38
DH-XC-49	6	4900(16)	1.1	220/380	50/60	8800	70	38
DH-XC-45	6	4500(15)	0.75	220/380	50/60	5100	58	38
DH-XC-42	6	4200(14)	0.75	220/380	50/60	4500	63	38
DH-XC-40	6	4000(13)	0.75	220/380	50/60	8400	72	38

Application Areas

High and large spaces such as industrial plants,logistics warehousing,and public places.
