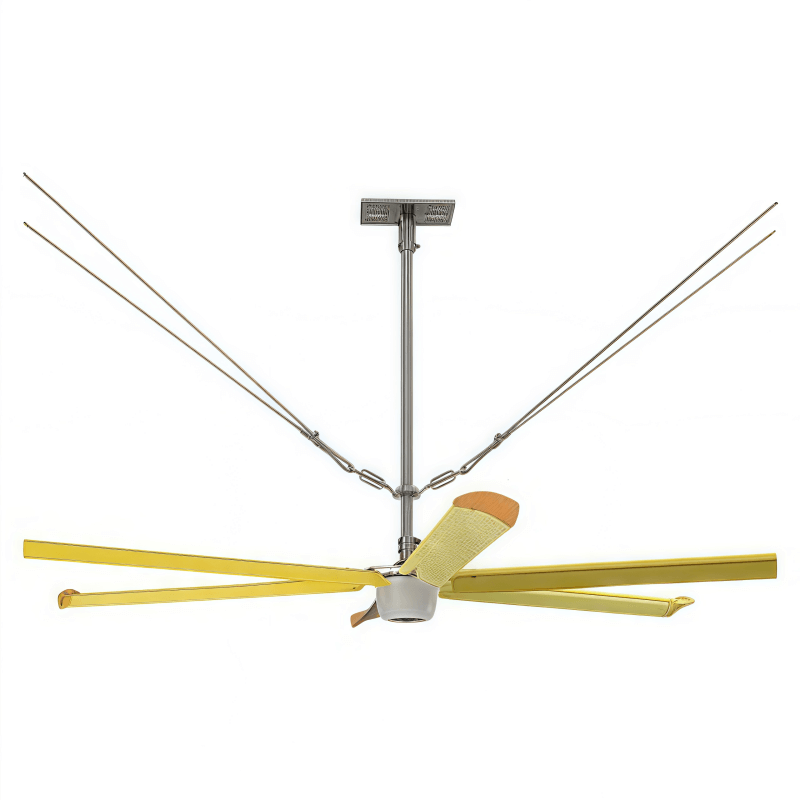

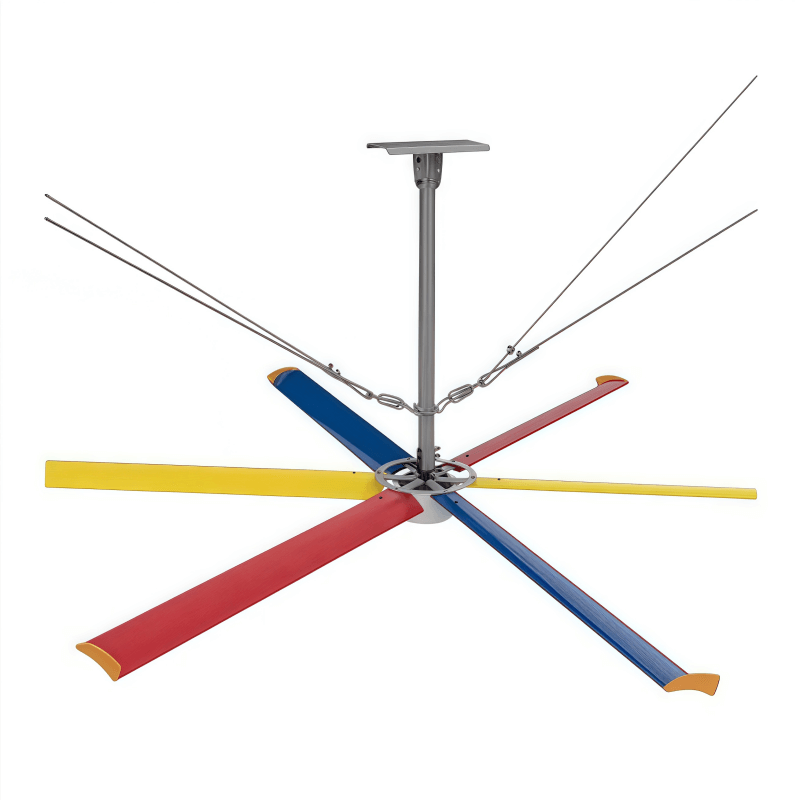

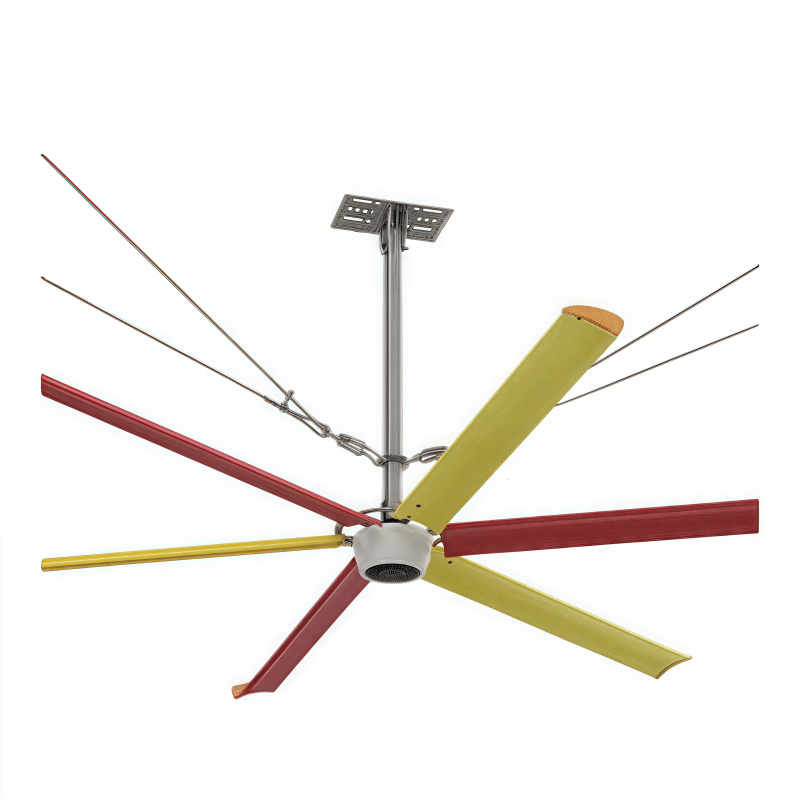

2.1-3.8m permanent magnet hvls ceiling fan (colorful blades)

Product
2.1-3.8m permanent magnet hvls ceiling fan (colorful blades)
Description

High performance sensorless recognition BD-DSP driver, characterized by stability and reliability; Wide speed range, high operating efficiency, and can be used in the range of 50Hz~60Hz; Convenient speed regulation, smooth operation, stable performance, using two-stage deceleration technology, suitable for use in the commercial ceiling fan industry.

Made of high-performance aluminum copper magnesium zinc alloy material, streamlined fan blades are made using advanced molding technology and produced in one go, with light weight and high strength.

Product parameters
Model Blades No. Fan Diameter

(mm/ft)

Power

(kw)

Voltage

(v)

Frequency

(hz)

Air volume

(m3/h)

Speed

(rpm)

Noise

(dB)

DH-XC-38 6 3800(13) 0.4 220 50/60 3400 80 37
DH-XC-36 6 3600(12) 0.4 220 50/60 2980 90 37
DH-XC-33 6 3300(11) 0.4 220 50/60 2800 82 37
DH-XC-30 6 3000(10) 0.4 220 50/60 2750 90 37
DH-XC-27 6 2700(9) 0.4 220 50/60 2700 95 37
DH-XC-25 6 2500(8) 0.4 220 50/60 2700 110 37
DH-XC-21 6 2100(7) 0.4 220 50/60 2700 140 37
