Original Black Color Cooling Pad

Product
Original Black Color Cooling Pad
Description

DAIHO Evaporative Cooling Pads are specifically designed for industrial portable air coolers and evaporative cooling systems. Manufactured from high-quality cellulose material, these pads ensure excellent water absorption, uniform airflow, and long-lasting durability.

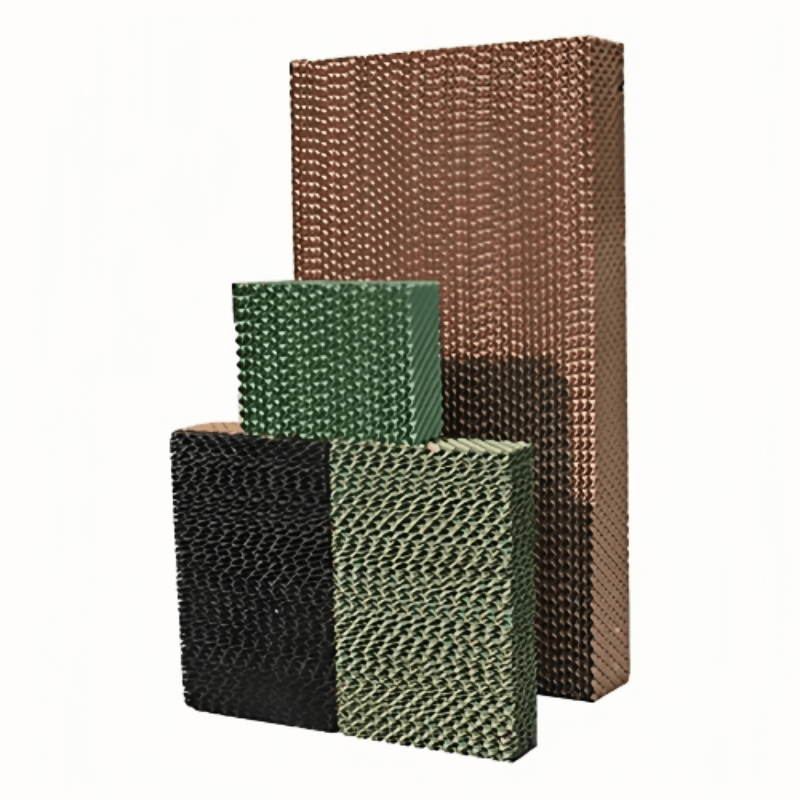

Available in black, brown, and green finishes, the pads feature a honeycomb structure that maximizes surface area, allowing water to evaporate efficiently and cool the air as it passes through.

Whether you’re operating in factories, warehouses, greenhouses, or poultry farms, these pads are engineered to deliver high-performance cooling while maintaining energy efficiency.

PRODUCT SPECIFICATION



System cooling is accomplished in its core wet cooling pad. There is a thin layer of water film on the surface of wave-like fiber paper. When outdoor dry and hot air is drawn by the fan through the wet cooling pad, the water in the film will absorb the heat from the air and evaporate, taking away a large amount of heat. Thus, the temperature of the air going through the wet cooling pad is reduced. Through such treatment, the cool and moist air enters the house. After mixing with indoor hot air, it is exhausted by fans. At the same time, during cooling, the waste and dust in outdoor air are filtered, which increases the amount of oxygen in the air, making indoor air fresher and improving air quality in the working environment.

PRODUCT PARAMETERS
Model 7090 6090 5090
H(mm) 1200,1400,1500,1800,2000 1200,1400,1500,1800,2000 Custom-made on clients’ requirements
W(mm) 600,300 600,300 Custom-made on clients’ requirements
D(mm) 100,150,200 100,150,200 Custom-made on clients’ requirements
h(mm) 7 7 5
α(°) 45 45 45
β(°) 45 45 45
H:Height of cooling pad                              h:Waviness height of cooling pad

W:Width of cooling pad                              α:Angle of corrugation

D:Depth of cooling pad                               β:Angle of corrugation

Three Material of Frame for Customer Choice

Assembled cooling pad with Aluminium alloy frame Assembled cooling pad with Stainless steel frame Assembled cooling pad with Galvanized steel frame
