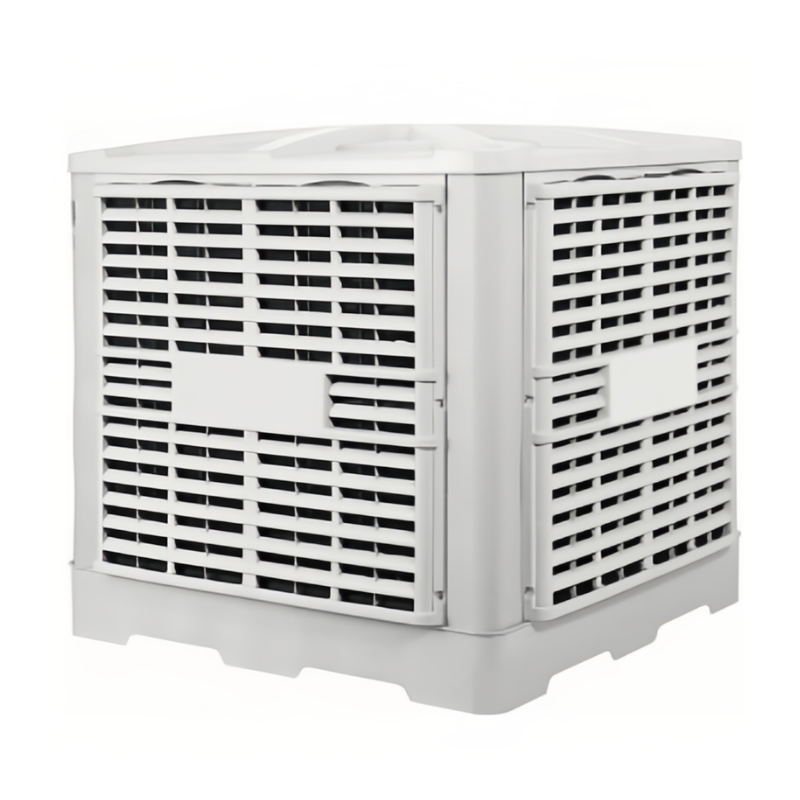

30000CMH evaporative air cooler
Description
Product Features and Advantages
- High-pressure quiet plastic nylon fan blades, with high airflow and low energy consumption, low noise;
- Injection moulded,cabinet,pp homopolymer engineering material ,add flexibilizer,UV-cut resistant;
- Automatic control of water supply system, open type water thief,divide water fluency, automatic cleaning, no blockage;
- Widely applicable in open and semi-open environments for achieving position ventilation.
- Fast cooling, large area cooling, air supply distance up to 20-30meters
Product parameters
| Model | Dimension
LxWxH(mm) |
Power
(kw) |
Voltage/
Freq. (v/hz) |
Max Air volume
(m3/h) |
Dimension of air outlet
(mm) |
Water consumption
(L/H) |
Water tank
(L) |
Speed option | Controller style |
| DH-30AS
(Top) |
1260x1260x1160 | 3.0 | 380v/50hz | 30000 | 790×790 | 20-25 | 60 |
Single speed |
Manual control |
| DH-30AS/BP
(Top) |
1260x1260x1160 | 3.0 | 220v/50hz | 30000 | 790×790 | 20-25 | 60 |
Multi-speeds |
LCD display |
| DH-30DS
(Down) |
1260x1260x1160 | 3.0 | 380v/50hz | 30000 | 790×790 | 20-25 | 60 |
Single speed |
Manual control |
| DH-30DS/BP
(Down) |
1260x1260x1160 | 3.0 | 220v/50hz | 30000 | 790×790 | 20-25 | 60 |
Multi-speeds |
LCD display |
