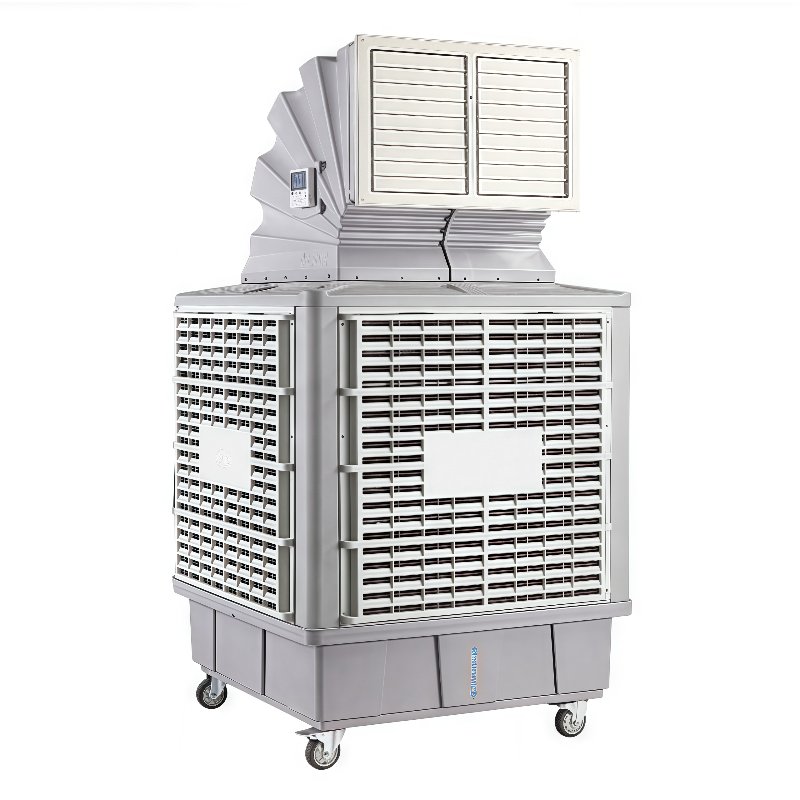

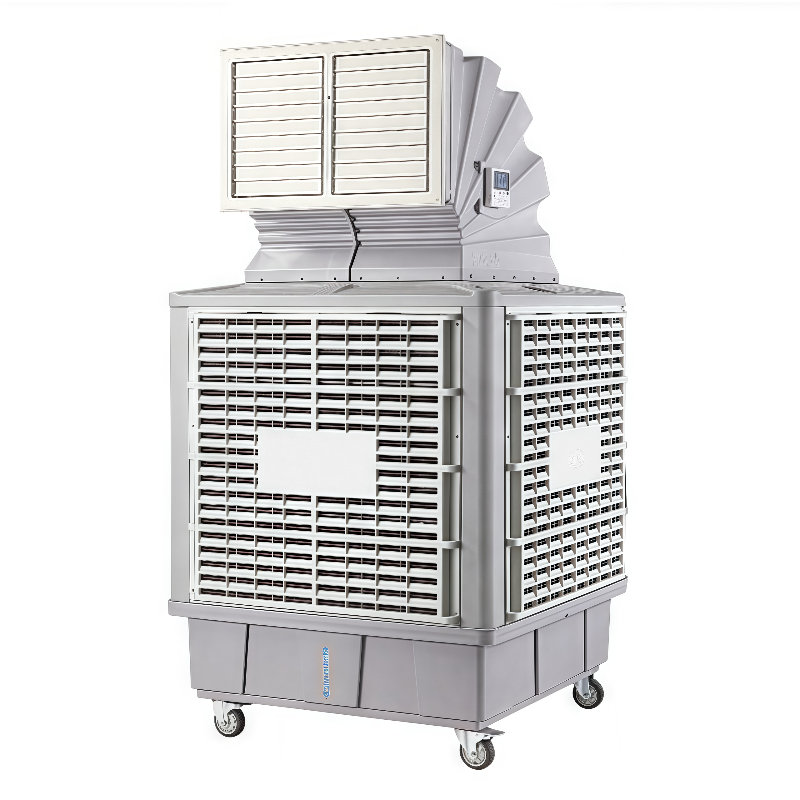

23000CMH Mobile evaporative air cooler
Description
Product Features and Advantages
- High-pressure quiet plastic nylon fan blades, with high airflow and low energy consumption, low noise;
- Injection moulded,cabinet,pp homopolymer engineering material ,add flexibilizer,UV-cut resistant;
- Automatic control of water supply system, open type water thief,divide water fluency, automatic cleaning, no blockage;
- Widely applicable in open and semi-open environments for achieving position ventilation.
- Fast cooling, large area cooling, air supply distance up to 15-20 meters
Product parameters
| Model | Dimension
LxWxH(mm) |
Power
(kw) |
Voltage/Freq.
(v/hz) |
Air volume
(m3/h) |
Water consumption
(L/H) |
Water tank
(L) |
Speed option | Fan type | Controller style |
| DH-18ASY | 1090x1090x1950 | 1.1 | 380v/50hz | 18000 | 10-15 | 300 | 1 | Axial flow | Manual control |
| DH-18ASY/BP | 1090x1090x1950 | 1.1 | 220v/50hz | 18000 | 10-15 | 300 | 12 | Axial flow | LCD display |
| DH-23ASY | 1100x1100x1950 | 1.5 | 380v/50hz | 23000 | 15-20 | 300 | 1 | Axial flow | Manual control |
| DH-23ASY/BP | 1100x1100x1950 | 1.5 | 220v/50hz | 23000 | 15-20 | 300 | 12 | Axial flow | LCD display |
| DH-30ASY | 1260x1260x2300 | 3.0 | 380v/50hz | 30000 | 20-25 | 300 | 1 | Axial flow | Manual control |
| DH-30ASY/BP | 1260x1260x2300 | 3.0 | 220v/50hz | 30000 | 20-25 | 300 | 12 | Axial flow | LCD display |
