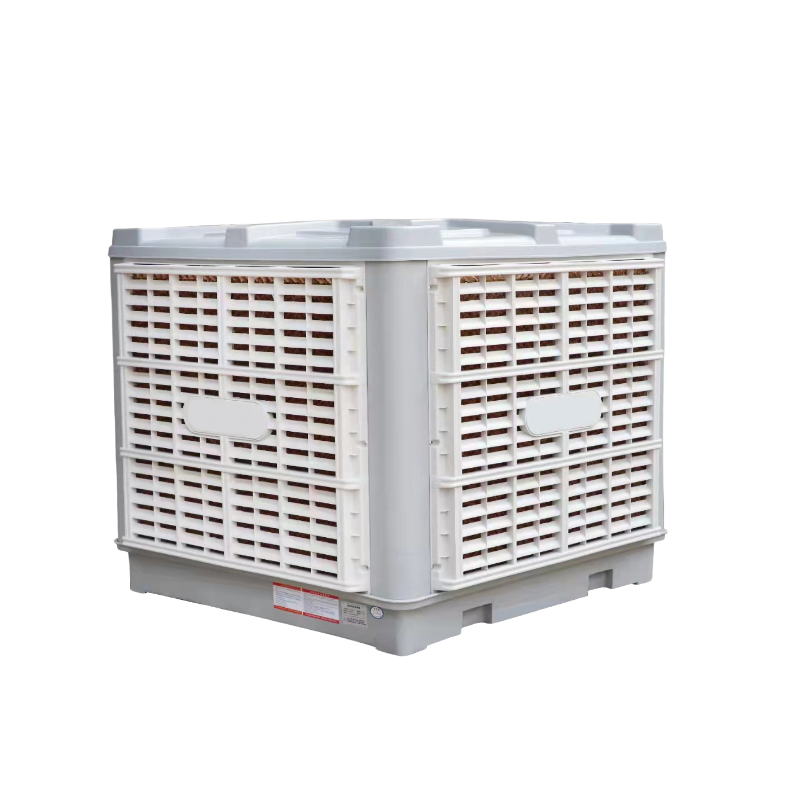

18000CMH Industrial mounted evaporative air cooler
Description
Product Features and Advantages
- High-pressure quiet plastic nylon fan blades, with high airflow and low energy consumption, low noise;
- Injection moulded,cabinet,pp homopolymer engineering material ,add flexibilizer,UV-cut resistant;
- Automatic control of water supply system, open type water thief,divide water fluency, automatic cleaning, no blockage;
- Widely applicable in open and semi-open environments for achieving position ventilation.
- Fast cooling, large area cooling, air supply distance up to 15-20 meters
Product parameters
| Model | Dimension
LxWxH(mm) |
Power
(kw) |
Voltage/Freq.
(v/hz) |
Max Air volume
(m3/h) |
Dimension of air outlet
(mm) |
Water consumption
(L/H) |
Water tank
(L) |
Speed option | Controller style |

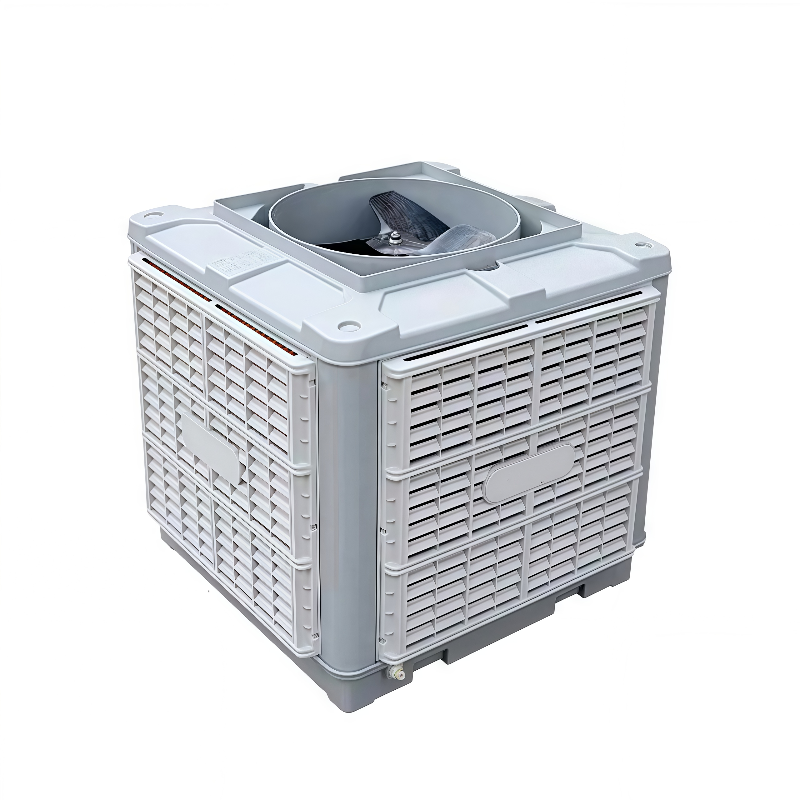

| DH-18AS
(Top) |
1090x1090x980 | 1.1 | 380v/50hz | 18000 | 670×670 | 10-15 | 25 | Single speed | Manual control |
| DH-18AS/BP
(Top) |
1090x1090x980 | 1.1 | 220v/50hz | 18000 | 670×670 | 10-15 | 25 | Multi-speeds | LCD display |
| DH-18DS
(Down) |
1090x1090x980 | 1.1 | 380v/50hz | 18000 | 670×670 | 10-15 | 25 | Single speed | Manual control |
| DH-18DS/BP
(Down) |
1090x1090x980 | 1.1 | 220v/50hz | 18000 | 670×670 | 10-15 | 25 | Multi-speeds | LCD display |

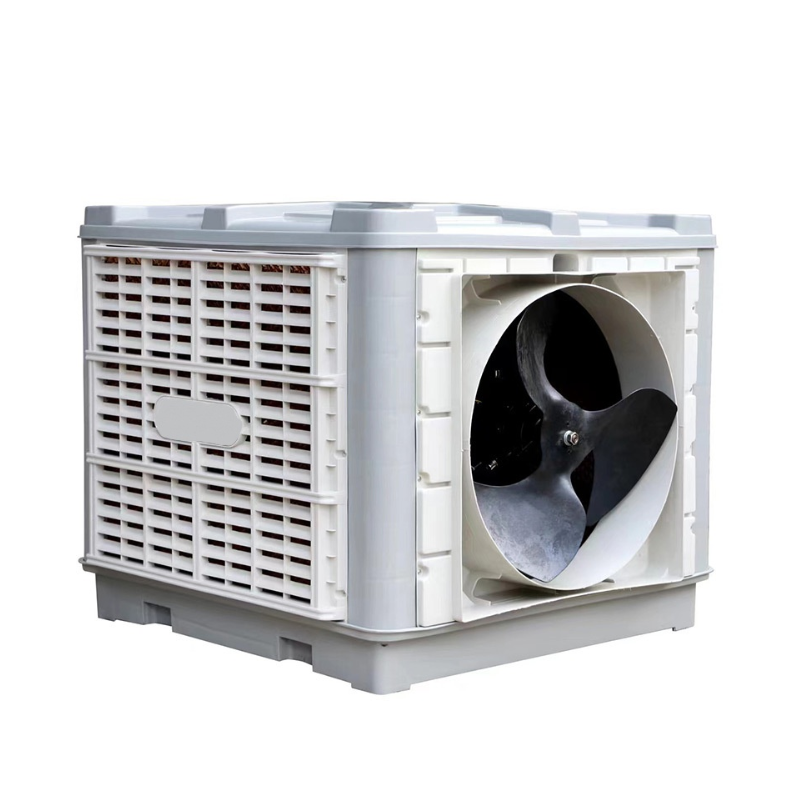

| DH-18BS
(Side) |
1090x1090x980 | 1.1 | 380v/50hz | 18000 | 690×700 | 10-15 | 25 | Single speed | Manual control |
| DH-18BS/BP
(Side) |
1090x1090x980 | 1.1 | 220v/50hz | 18000 | 690×700 | 10-15 | 25 | Multi-speeds | LCD display |
