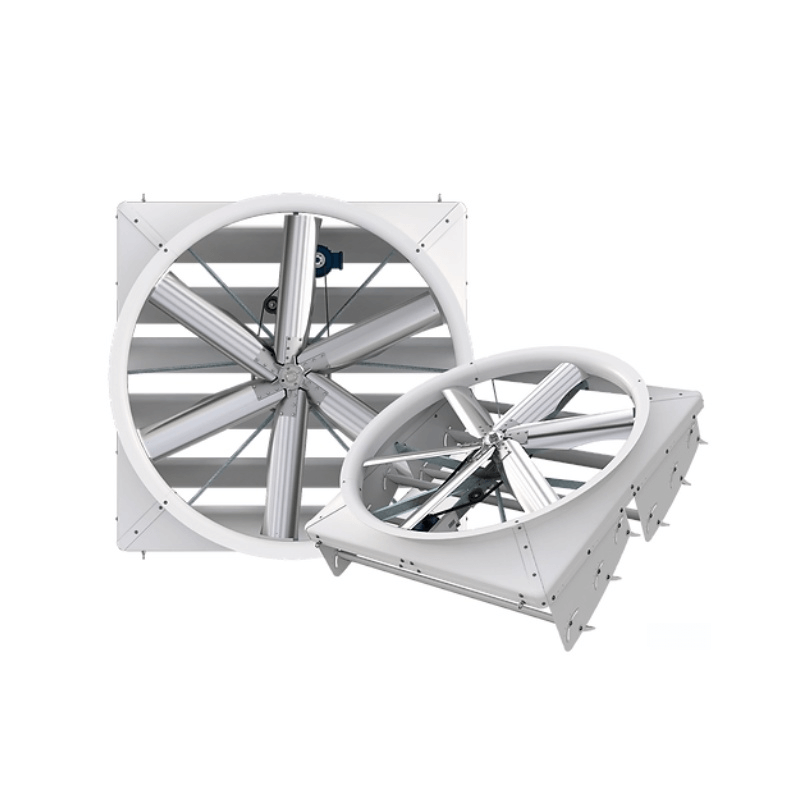

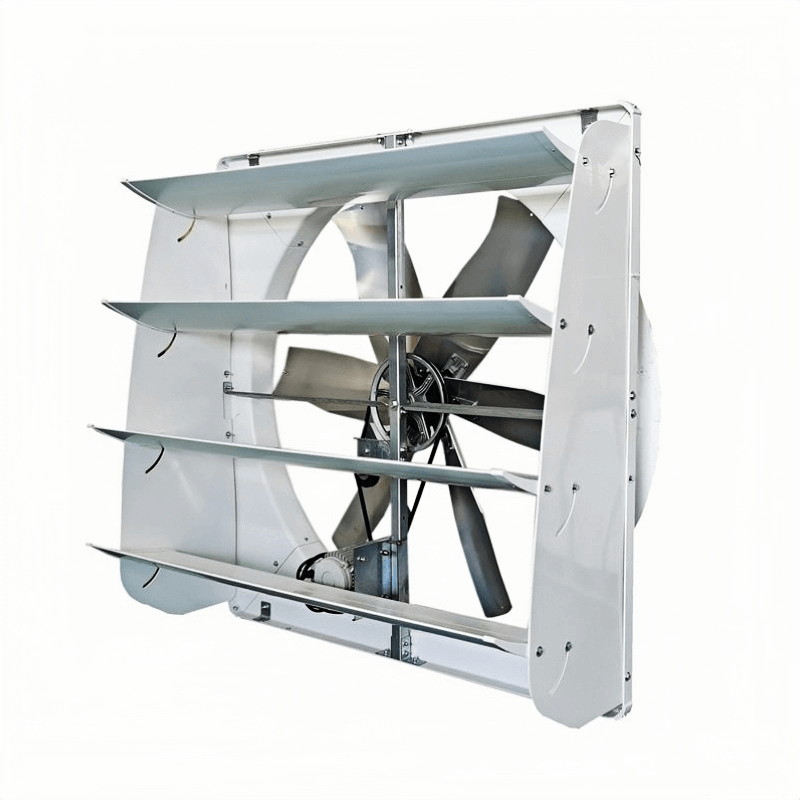

72 Inch Cyclone Fan
Description
72″ CYCLONE CIRCULATION FAN FOR DAIRY FARM, CATTLE FARM, COW FARM, HORSE STABLE, LIGHT WEIGHT, BELT DRIVEN
Product Features and Advantages
- 72” fiberglass fan is widely used in cowsheds. Big airflow, fast cooling,wide air coverage makecow comfort.
- The shell adopt moulded fiberglass shell which has stong strength and high durability.
- Adopt heavy duty type belt drive.
- Motor protection grade IP55, maintenance free. Insulation grade F.
- The fan can be installed on steel column, structural column, or hanged from the ceiling (optional).

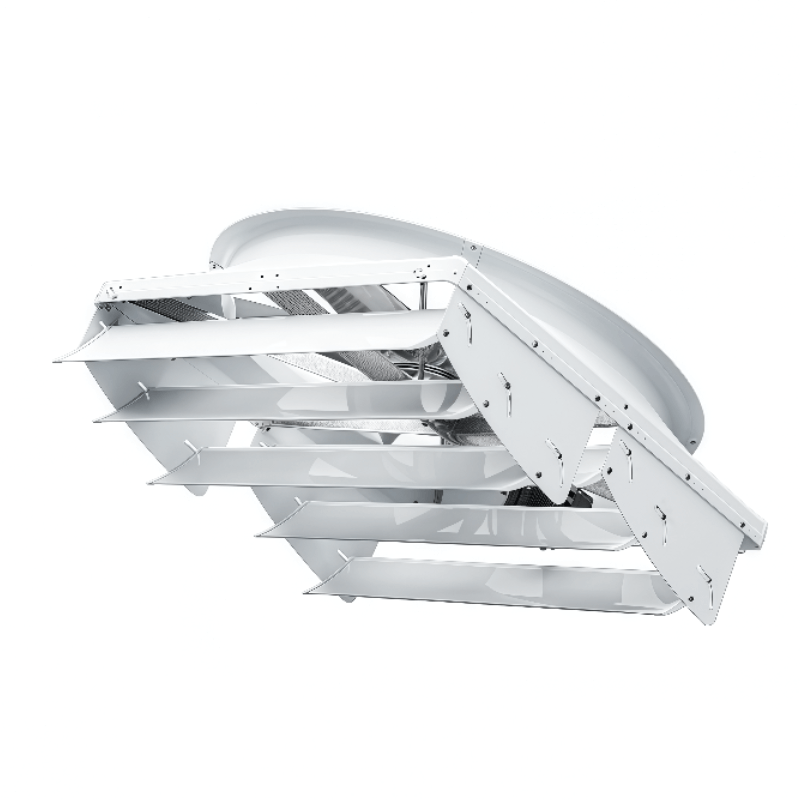

- The 72-inch Cyclone fan adopts six deflectors used for air direction.
- 6 pieces of aluminum alloy fan blades are corrosion resistant.
Product parameters
| Model No. | Air Volume
(m3/h) 0 Pa |
Rated Power
(kw) |
Rated Voltage
(v) |
Blade Material | Shell Material | Drive Mode | Blade Diameter
(mm) |
Wind Speed 6m
(m/s) |
Wind Speed 12m
(m/s) |
Noise 6m
(dB) |
Size (L*W*T)
(mm) |
| DH-AL-72CF | 93000 | 2.2 | 380v/50hz | Aluminium Magnesium Alloy Blade, Thickness 4mm | Fiberglass | Belt Drive | 1830 | ≥6.5 | ≥4.1 | 65 | 2000*2000*1060 |
