SF(B) Axial Fan

Product
Home > Product > Axial Flow Fans
SF(B) Axial Fan
SF(B) Axial Fan
SF(B) Axial Fan
SF(B) Axial Fan
SF(B) Axial Fan
SF(B) Axial Fan
SF(B) Axial Fan
SF(B) Axial Fan
SF(B) Axial Fan
Description

DAIHO SF(B) series adopt special twisted blade design and flange casing, which makes the noise lower and the air volume larger. The advantage painting process maintains surface smooth and beautiful. The series are featured by good performance, maintenance free and used to transport air in workshop storage and places of recreation and other places. But these places shouldn’t contain flammable, explosive and corrosive gases, with a temperature no higher than 50℃.

Chat with us Leave a message E-mail
PRODUCT FEATURE

-Adopt a motor with a pressed shell for better heat dissipation.

-Low noise ball bearing, reset heat protection, long service life motor.

-Adopt high-quality light steel sheet pressing structural components that offer excellent rigidity, lightweight design, attractive appearance, and easy installation.

-The fan blade has been optimized using CAD technology, resulting in high air volume, low noise, and stable operation.

-We can produce safety guard mesh in accordance with the client’s specific requirements.

PRODUCT PARAMETERS
Model(No) Power(kw) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Noise dB(A)
2B 0.06 220 1400 900 25 ≤58
2.5B 0.09 220/380 1400 1300 26 ≤59
3B 0.12 220/380 1400 1800 30 ≤61
3.5B 0.18 220/380 1400 2880 55 ≤63
4B 0.25 220/380 1400 4370 84 ≤70
5B 0.18 380 1400 3694 45 ≤68
0.37 220/380 1400 5670 100 ≤73
5.6B 0.25 380 910 5470 50 ≤71
0.37 380 1400 8092 110 ≤79
6B 0.55 220/380 1400 8660 122 ≤80
0.37 380 910 5760 65 ≤73
7B 1.1 380 1400 14643 126 ≤83
0.75 380 910 9146 85 ≤78



SF(B) Axial Flow Fans Installation Dimension Chart
Model(No.) ∅1 ∅2 ∅3 ∅4 L L1 N-∅d
SF-2B 210 230 260 — 220 — 3-∅8
585S630F735-7702.5B 260 280 310 310 220 — 3-∅8
SF-3B 310 330 360 370 220 — 3-∅8
SF-3.5B 360 380 410 420 230 — 4-∅8
SF-4B 410 430 460 485 230 — 4-∅8
SF-5B 510 530 565 585 290 225 4-∅8
SF-5.6B 565 585 620 630 290 225 4-∅8
SF-6B 610 630 665 695 290 225 6-∅8
SF-7B 710 735 770 780 350 — 8-∅8

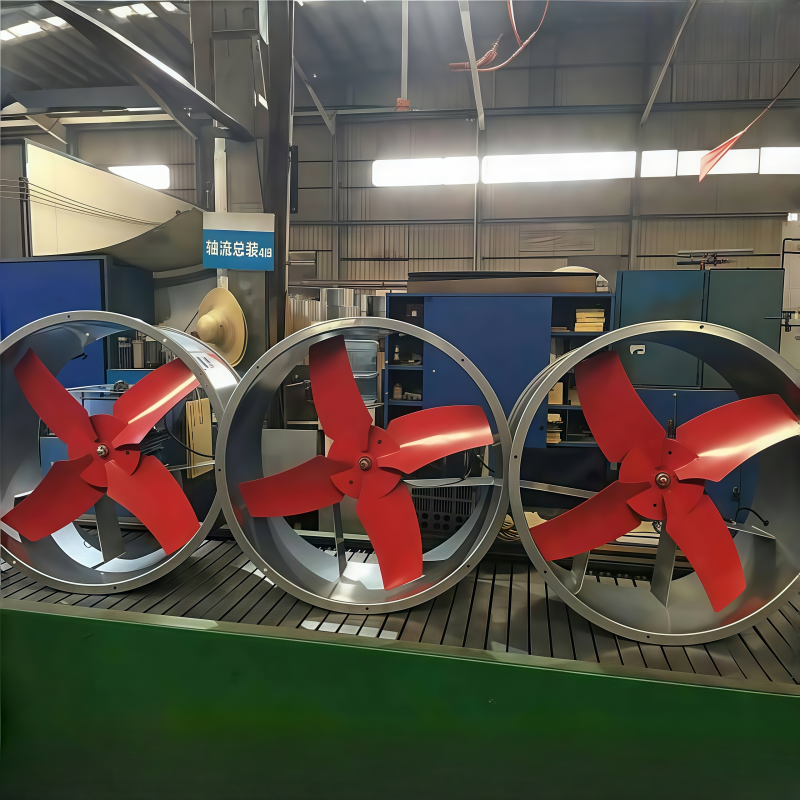

PRODUCT DISPLAY
