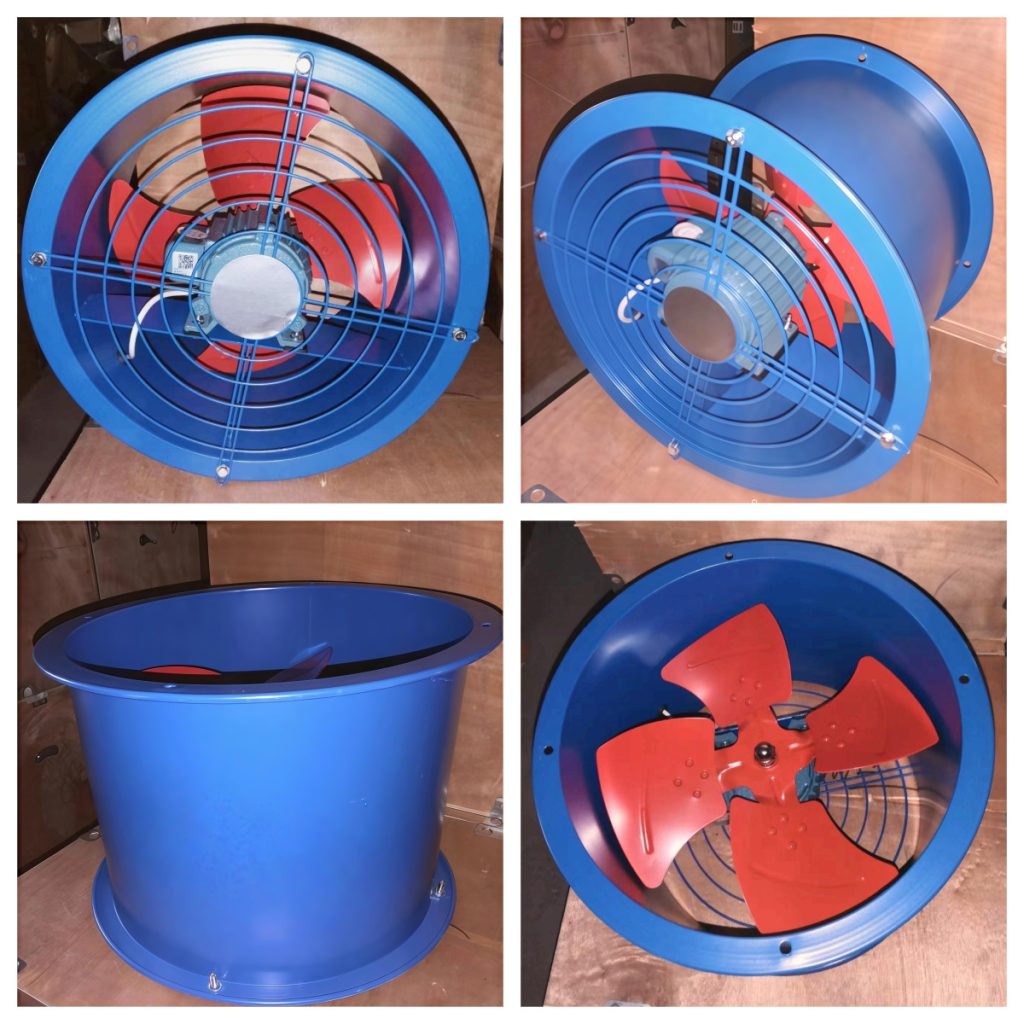

EG Energy-saving Duct Fan
EG Energy-saving Duct Fan
EG Energy-saving Duct Fan
EG Energy-saving Duct Fan
EG Energy-saving Duct Fan
EG Energy-saving Duct Fan
EG Energy-saving Duct Fan
EG Energy-saving Duct Fan
EG Energy-saving Duct Fan
Description

DAIHO EG series are featured by low noise. Large air volume, electricity saving and rational structure and other features, and are choose as ideal devices by many departments such as chemical, light industry, civic construction and high-class hotels, applied to prevent sunstroke and lower temperature for the mining industry and the workshop storage, or used for pipeline pressure, the air supply, ventilation and roof ventilation in general industry.

Chat with us Leave a message E-mail
Product Features and Advantages

-The casing and impeller surfaces are coated using advanced techniques, resulting in soft, bright colors that remain long-lasting.

-The thickened metal mesh cover is sturdy and durable, effectively preventing foreign objects from entering and avoiding accidents.

-Reinforced blades,stamped from high-quality steel plate, high strength, special twist arc design,large air volume.

-High-speed motor lubrication performance, smooth operation, energy efficient and effectively reduce noise.

Product Parameters
Model(No) Power(kw) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure（Pa） Noise dB(A)
EG-2A-2 0.18 220/380 2800 600~940 80~60 ≤68
EG-2.5A-4 0.18 220/380 1400 790~1460 45~24 ≤58
EG-2.5A-2 0.25 220/380 2800 1200~1740 168~126 ≤71
EG-3A-4 0.205 220/380 1400 980~1988 54~27 ≤62
EG-3A-2 0.3 220/380 2800 2025~3552 208~144 ≤73
EG-3.5A-4 0.3 220/380 1400 1989~2980 92~25 ≤63
EG-3.5A-2 0.38 220/380 2800 3740~5029 271~175 ≤80
EG-4A-4 0.46 220/380 1400 2675~4970 150~98 ≤66
EG-4A-2 0.58 220/380 2800 5000~8000 352~131 ≤83
EG-5A-4 0.66 220/380 1400 3238~6198 159~95 ≤74


EG-5A-2

 1.5 380 2800 5191~9346 413~218 ≤85
2.2 380 2800 7428~11053 417~306 ≤86
EG-5.6A-4 1.1 380 1400 6990~10950 284~129 ≤80
EG-6A-4 1.8 380 1420 11500~16780 288~171 ≤82
EG-6A-6 0.9 380 910 4680~8990 160~92 ≤72


EG-6A-2

 3.0 380 2900 10791~15851 513~278 ≤89
4.0 380 2900 13259~18409 573~374 ≤91



EG Series Axial Flow Fan Installation Dimension Chart
Model(No.) Power(kw) ∅1 ∅2 ∅3 L N-∅d Weight(kg)
EG-2A 0.18 210 230 260 220 3-∅8 7
EG-2.5A 0.25 260 280 310 220 3-∅8 8
0.18
EG-3A 0.3 310 330 360 280 3-∅8 12
0.25
EG-3.5A 0.38 360 380 410 280 4-∅8 16
0.3 13
EG-4A 0.58 410 430 460 320 4-∅8 18
0.46
EG-5A 1.5 510 530 565 380 4-∅8 30
2.2 37
0.66 330 22
EG-5.6A 1.1 565 585 620 400 4-∅8 38.5
EG-6A 3 610 630 665 430 6-∅8 50
4 59
1.8 48
0.9 44
Product Details
Pure Copper Motor

The motor is made of 100% copper wire, featuring long lifespan and low power consumption. It includes a starting capacitor and capacitor wire, and operates by direct connection to drive the fan blades to rotate.
High quality fan blades

The blades are designed based on the three-stream principle, featuring high air volume and low noise. The fan blades are made of twisted steel plates, which have high strength and are not prone to deformation.
T-shaped frame

The frame is designed in the “T” shape and is made of high-strength material, ensuring excellent stability. It is welded directly to the body, making it even more stable.
Shock proof design

The motor foot pads are equipped with shock-absorbing rubber, which can effectively reduce vibrations, lower noise levels, and ensure the continuous and stable operation of the fan.
High-precision rotor

High power, high temperature resistance, low heat generation, low energy consumption, long service life.

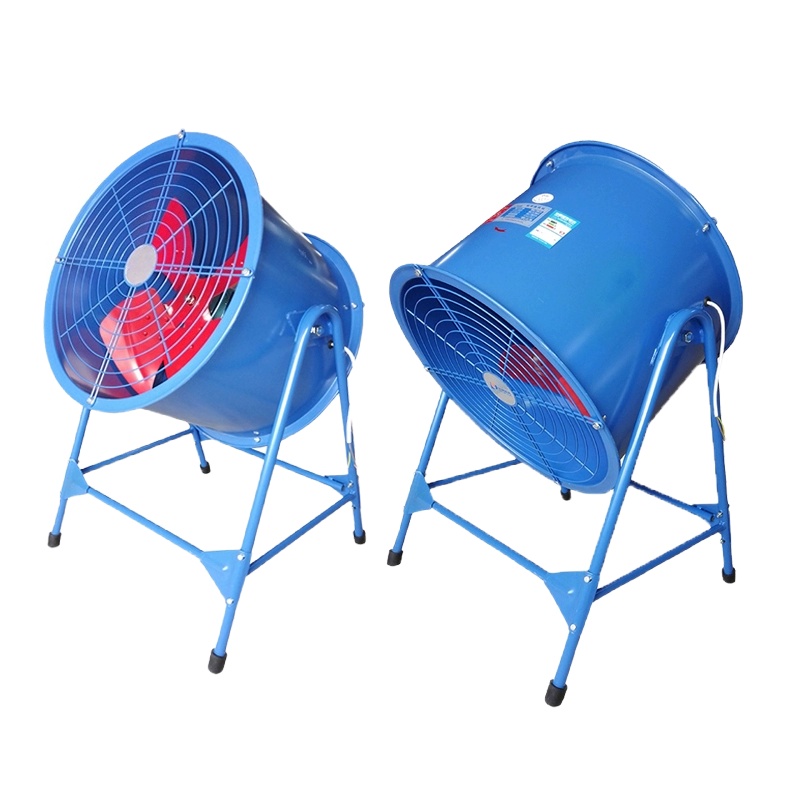

Tripod

The newly upgraded and strengthened tripod is more stable and reliable, and extremely durable.
