Description

DAIHO EB series adopt special twisted blade design and flange flanging casing, which makes the noise lower and the air volume larger. The series are featured by good performance, easy maintenance and used to transport air in workshop storage and places of recreation and other places. But these places shouldn’t contain flammable, explosive and corrosive gases, with temperature no higher than 50℃.

Chat with us Leave a message E-mail
Product Features and Advantages

4 aerodynamic aluminum blades – for high airflow with low resistance

Axial flow structure – delivers powerful linear air movement

Rear-mounted efficient motor – improves balance and energy use

Low operational noise – quiet even in continuous use

Heavy-duty steel housing – powder-coated for corrosion resistance

Easy mounting design – supports wall, duct, or inline installation

Available in multiple sizes – supports various airflow capacities

Product Parameters
Model(No.) Power(kw) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Noise dB(A)
EB-2A 0.06 220/380 1400 865 25 ≤57
EB-2.5A 0.075 220/380 1400 1105 32 ≤58
EB-3A 0.09 220/380 1400 1530 40 ≤60
EB-3.5A 0.15 220/380 1400 2448 56 ≤63
EB-4A 0.205 220/380 1400 3751 70 ≤70
EB-5A 0.3 220/380 1400 5140 75 ≤72
EB-6A 0.46 220/380 1400 7502 116 ≤78



EB Series Wall-Type Ventilator Installation Dimension Chart
Model(No.) ∅1 ∅2 ∅3 L N-∅d Weight(kg)
EB-2A 210 230 260 220 3-∅8 7
EB-2.5A 260 280 310 220 3-∅8 8
EB-3A 310 330 360 220 3-∅8 9
EB-3.5A 360 380 410 230 4-∅8 11
EB-4A 410 430 460 230 4-∅8 12
EB-5A 510 530 565 280 4-∅8 17
EB-6A 610 630 665 280 6-∅8 20

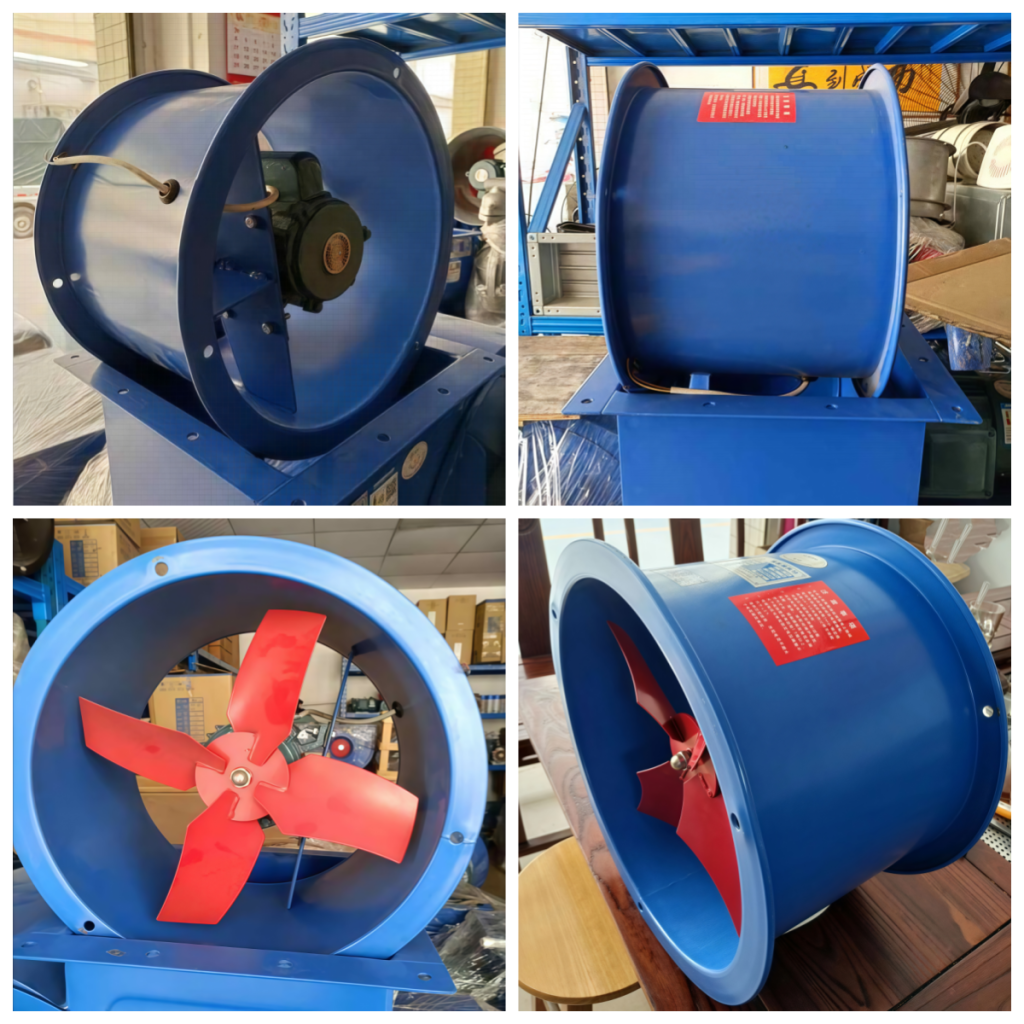

Product Dispaly
