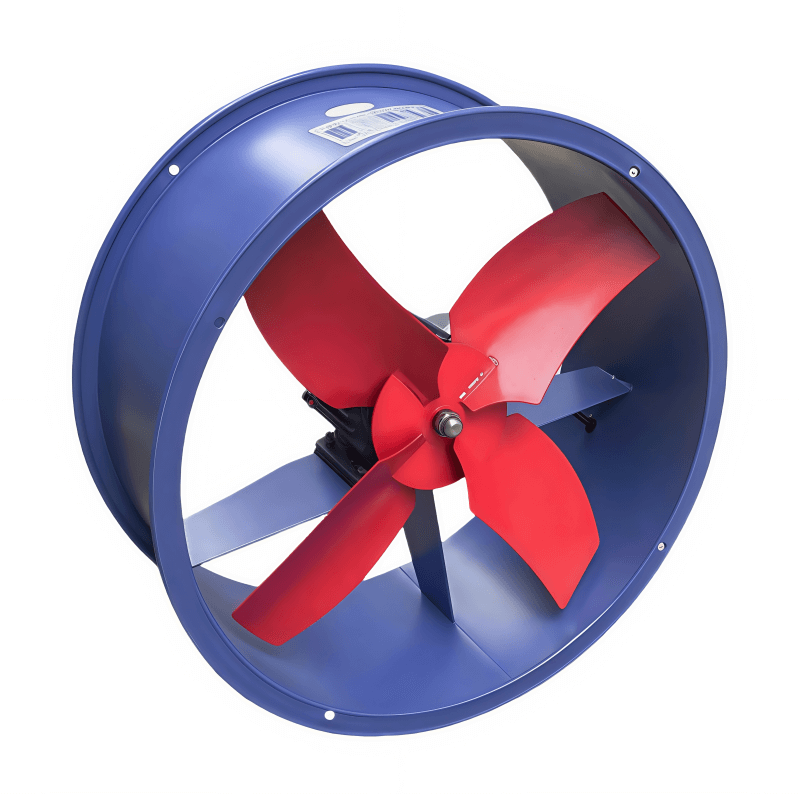

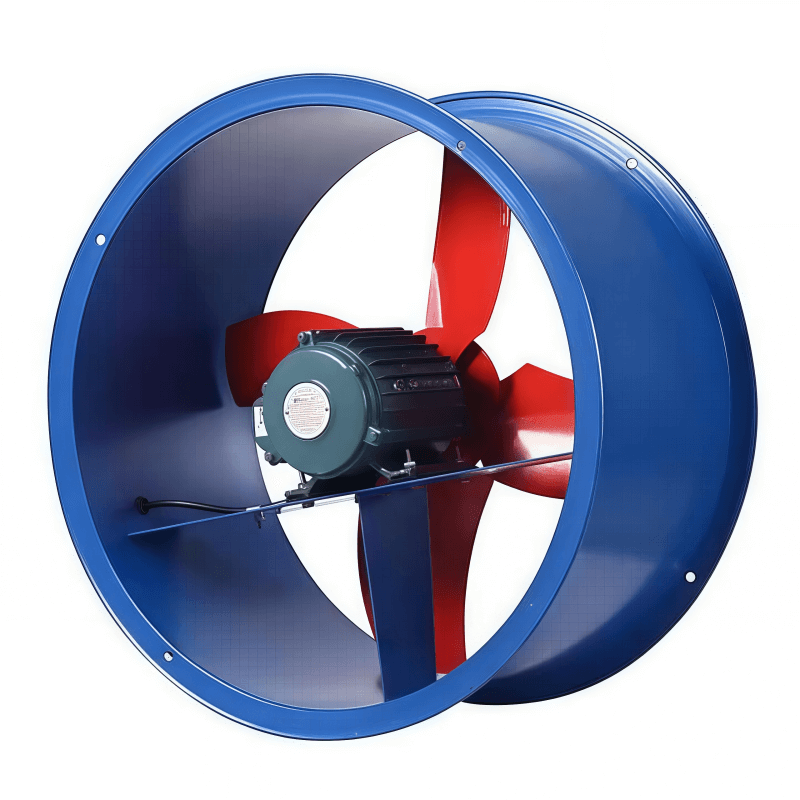

EB Energy-saving Duct Fan

Description

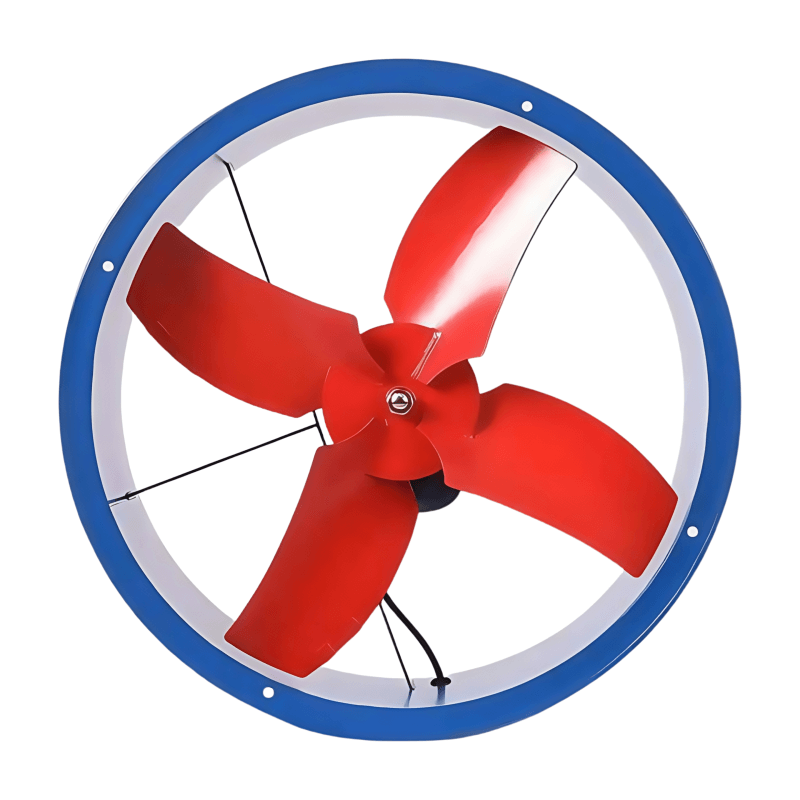

EB series adopt special twisted blade design and flange flanging casing, which makes the noise lower and the air volume larger. The series are featured by good performance, easy maintenance and used to transport air in workshop storage and places of recreation and other places. But these places shouldn’t contain flammable, explosive and corrosive gases, with temperature no higher than 50℃.

Chat with us Leave a message E-mail

Product Features and Advantages

Energy-saving: Optimized blade design delivers high airflow with low power consumption.
Quiet operation: Aerodynamic design reduces turbulence and vibration.
High durability: Premium materials (e.g., PBT plastic/aluminum) ensure long service life.
Customizable: AC/DC power options, multiple sizes (80mm~400mm), and adjustable speeds.
Protection: Some models feature IP55/IP67 ratings for dust/water resistance.

Product Parameters

Model(No)	Power(kw)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Noise dB(A)
EB-2A	0.06	220/380	1400	865	25	≤57
EB-2.5A	0.075	220/380	1400	1105	32	≤58
EB-3A	0.09	220/380	1400	1530	40	≤60
EB-3.5A	0.15	220/380	1400	2448	56	≤63
EB-4A	0.205	220/380	1400	3751	70	≤70
EB-5A	0.3	220/380	1400	5140	75	≤72
EB-6A	0.46	220/380	1400	7502	116	≤78
