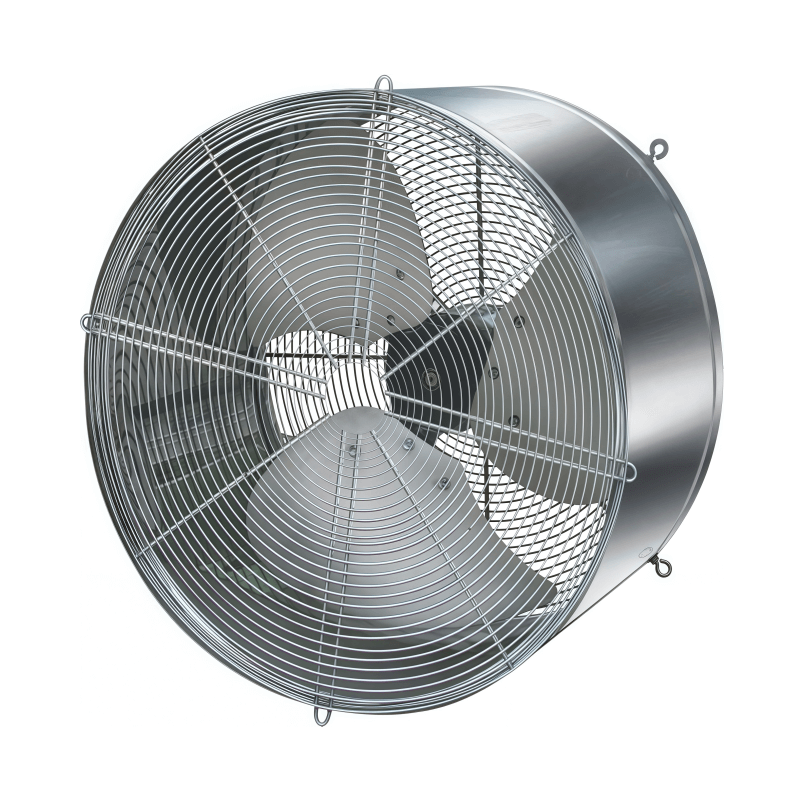

Stanless steel Hanging Air Circulation Fan
Description
DAIHO air circulation fans are the ideal product whenever air displacement are required. These are available in 18″ and 22” with wall-housing in galvanized steel or stainless steel for maximum corrosion resistance. For buildings like greenhouses, farms and pig farms. Air circulation fans are an excellent choice. They improve photosynthesis in plants and maintain suitable humidity and temperature in greenhouses. In farms, installing these fans effectively reduces the risk of animal diseases and improves their living conditions. Similarly, increasing the number of ventilation devices in pig farms ensures good ventilation while minimizing odor spread.
PRODUCT FEATURES AND ADVANTAGES
-Fan housing made of stainless steel construction.
-Aerodynamic profiled blades impeller is made of aviation-grade aluminum alloy to generate a high flow rate.
-Inlet and Outlet protection net to avoid foreign items entering the fan.
-Easy to install with 4 steady hanging rings
PRODUCT PARAMETERS
|
Model |
Propeller Dia.
(mm/inch) |
External Dia.
(mm/inch) |
Fan speed
(rpm) |
Rated power
(kw/hp) |
Air flow
(m3/h) |
Voltage
(v) |
Frequency
(hz) |
Noise
(db) |
Package size
H*W*T(mm,inch) |
| DH-HAC22 |
550/22’’ |
570/23’’ |
870 |
0.15 |
6500 |
220/380 |
50 |
50 |
600x600x530 |
| DH-HAC18 |
450/18’’ |
470/19’’ |
870 |
0.08 |
4500 |
220/380 |
50 |
40 |
500x600x500
|

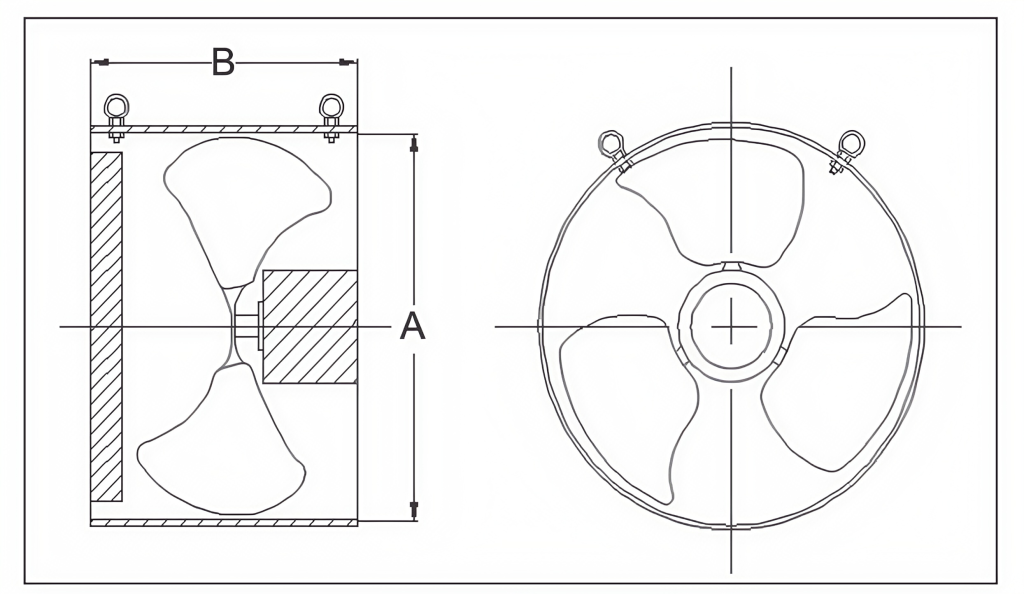

| Hanging Air Circulation Fan Installtion Dimension Chart |
| Model |
ΦA(mm) |
ΦB(mm) |
Weight(kg) |
| DH-HAC22 |
570 |
400 |
18 |
| DH-HAC18 |
450 |
400 |
16 |

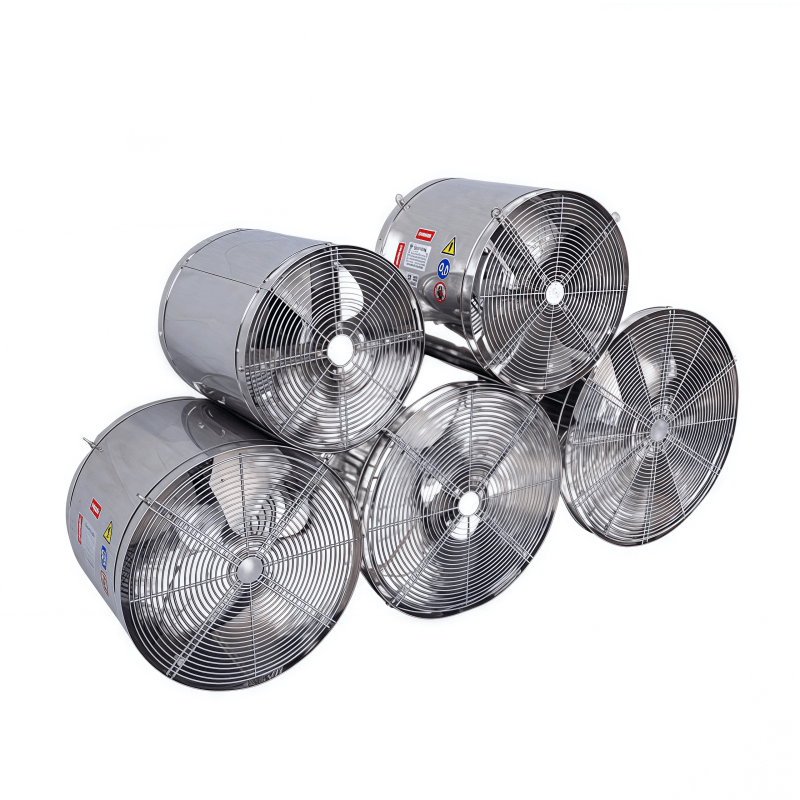

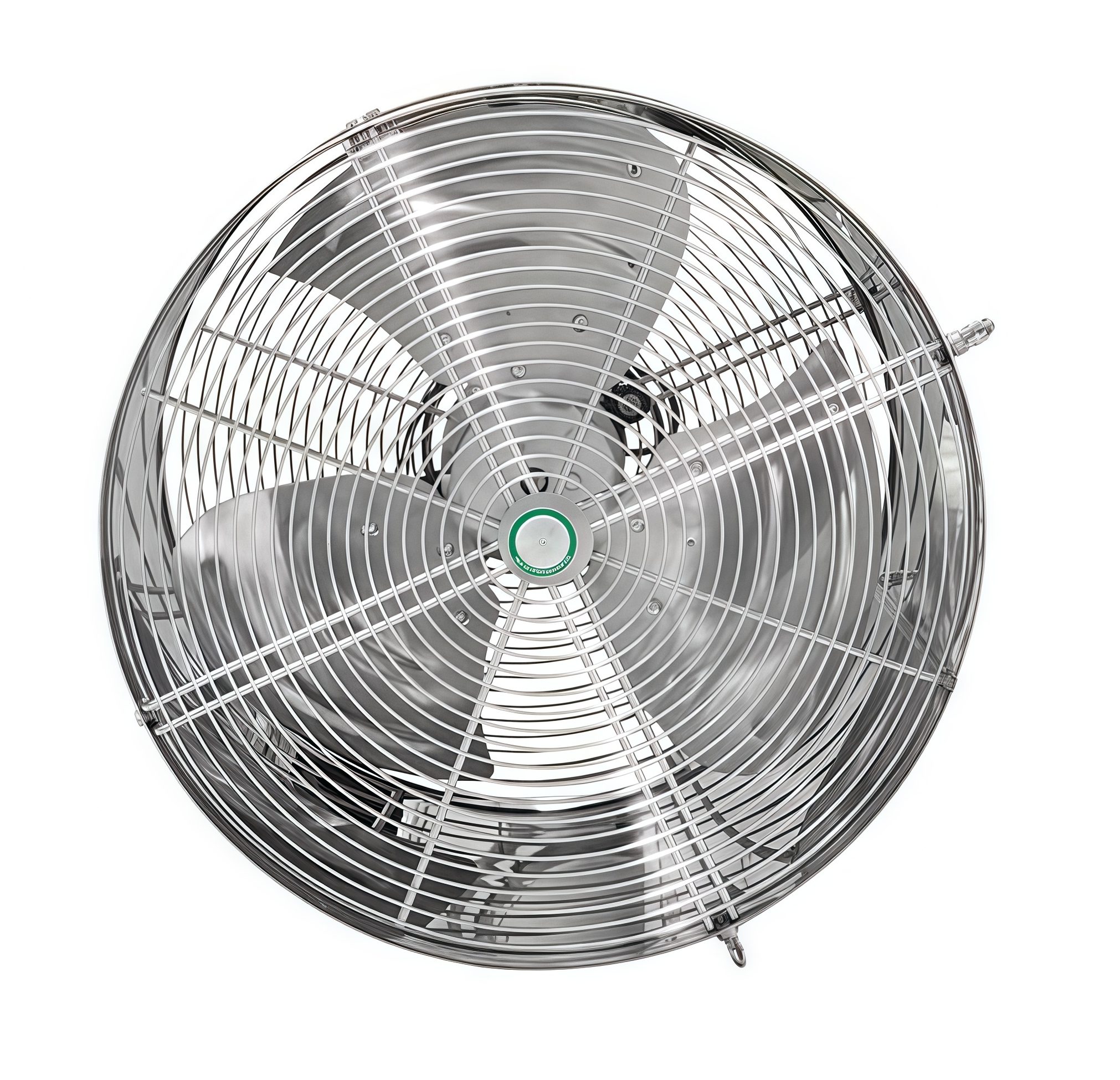

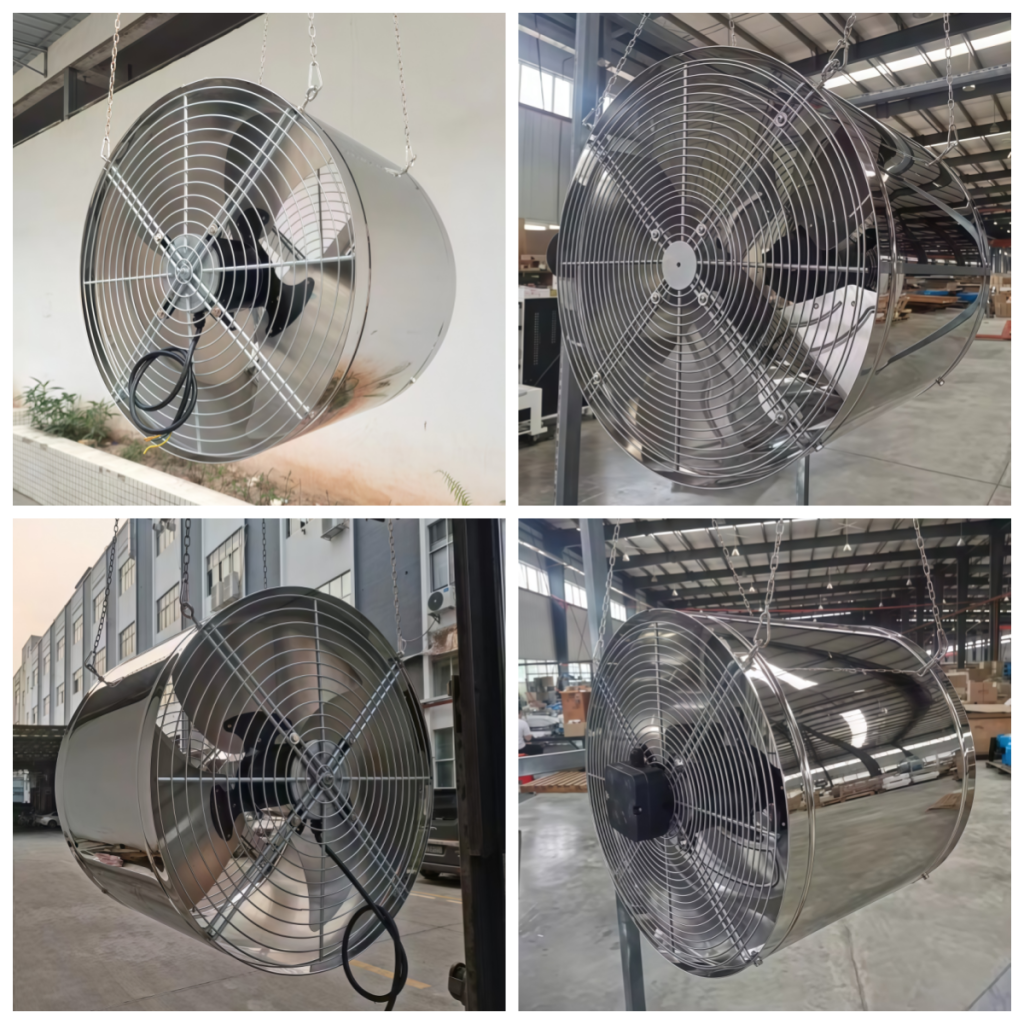

PRODUCT DISPLAY
PRODUCT APPLICATION
-Industrial ventilation: Used for air circulation and cooling in large spaces such as factories and warehouses.
-Home environment: Used for indoor air conditioning and cooling in households.
-Agricultural facilities: Promote air flow and maintain suitable temperatures in environments such as greenhouses.
-Commercial buildings: Improve air circulation in places such as shopping malls and offices.
-Cooling system: Cooperate with other cooling equipment to improve cooling efficiency.
